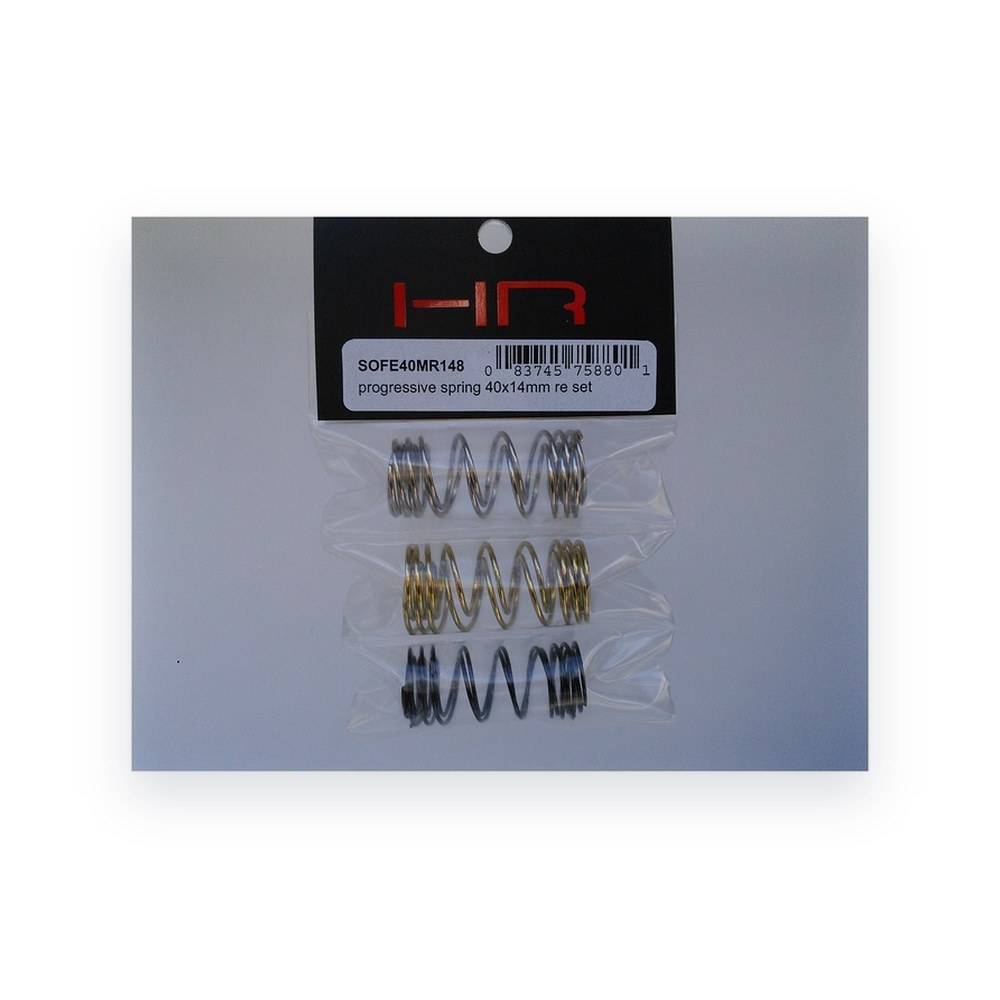

Hot Racing Progressive Rear Shock Spring Set, 40x14mm

About this part

Optional multi-rate spring set for the Losi 1/14 shocks on the rear of the Mini 8ight. The springs are made of spring steel.

Features

• Progressive rate springs, which give each application a suitable spring rate. They start soft to absorb small bumps, then stiffen to resist bottoming on jumps and other large hits.

You will receive

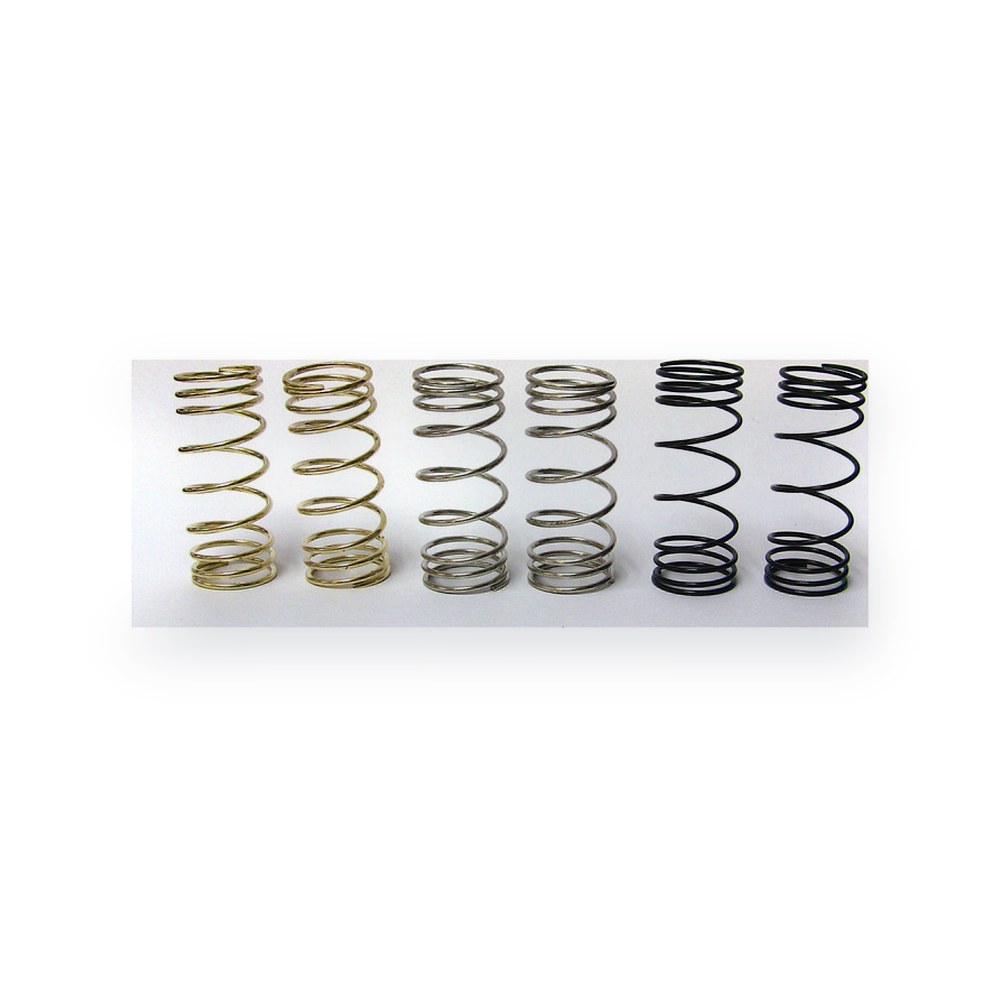

• Two 1.0 mm wire black progressive rate springs
• Two 1.2 mm wire silver progressive rate springs
• Two 1.3 mm wire gold progressive rate springs

Specifications

• Black: length 40 mm, inner diameter 14 mm, wire diameter 1.00, 9 turns
• Silver: length 40 mm, inner diameter 14 mm, wire diameter 1.10, 9 turns
• Gold: length 40 mm, inner diameter 14 mm, wire diameter 1.3, 9 turns

Comments

• The coils on these springs are spaced unevenly, so the rate changes as they compress. They compress easily for the first few millimeters. As more force is applied, the coils close together. Past a certain point, the coils at both ends stop working, and the spring becomes stiffer.
• FITS:
• Losi 1:14 Mini 8ight 4WD buggy
