Hot Racing Suspension Travel Limit Straps, 100mm (2), SLS100T0303

About this part

Scale functional suspension limit straps from Hot Racing for off-road R/C vehicles, including rock crawlers and racers. The straps reduce the load on the shocks and control how far the suspension extends. Tying them to the center of an axle, for example, keeps the vehicle from unloading or rolling on steep grades while the suspension still articulates. They are also useful for droop control and scale looks.

Features

• Woven 2-ply nylon fabric strap material
• CNC machined aluminum clevis buckles, orange anodized
• INCLUDED:

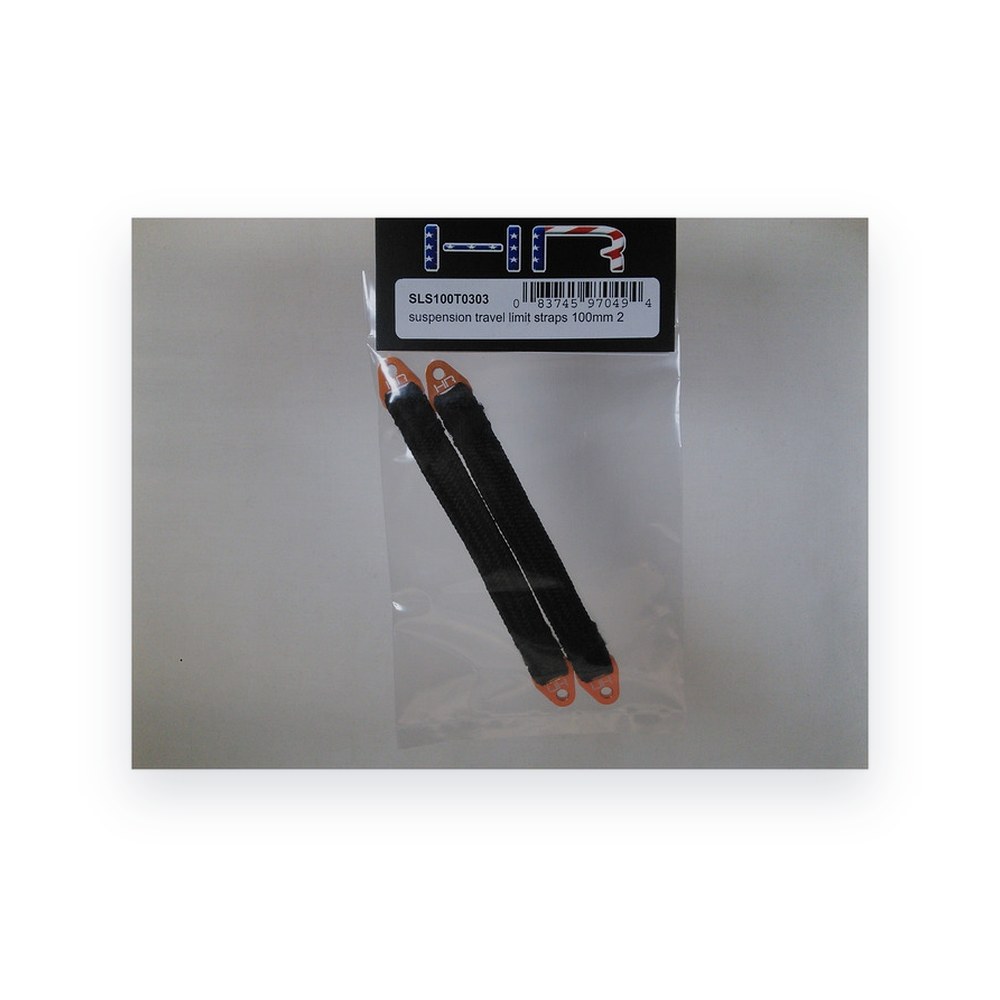

• Two (2) 100mm (nominal length) limit straps

Requirements

• Installation on the vehicle; custom mounting may be required
• Mounting hardware to suit the installation

Specifications

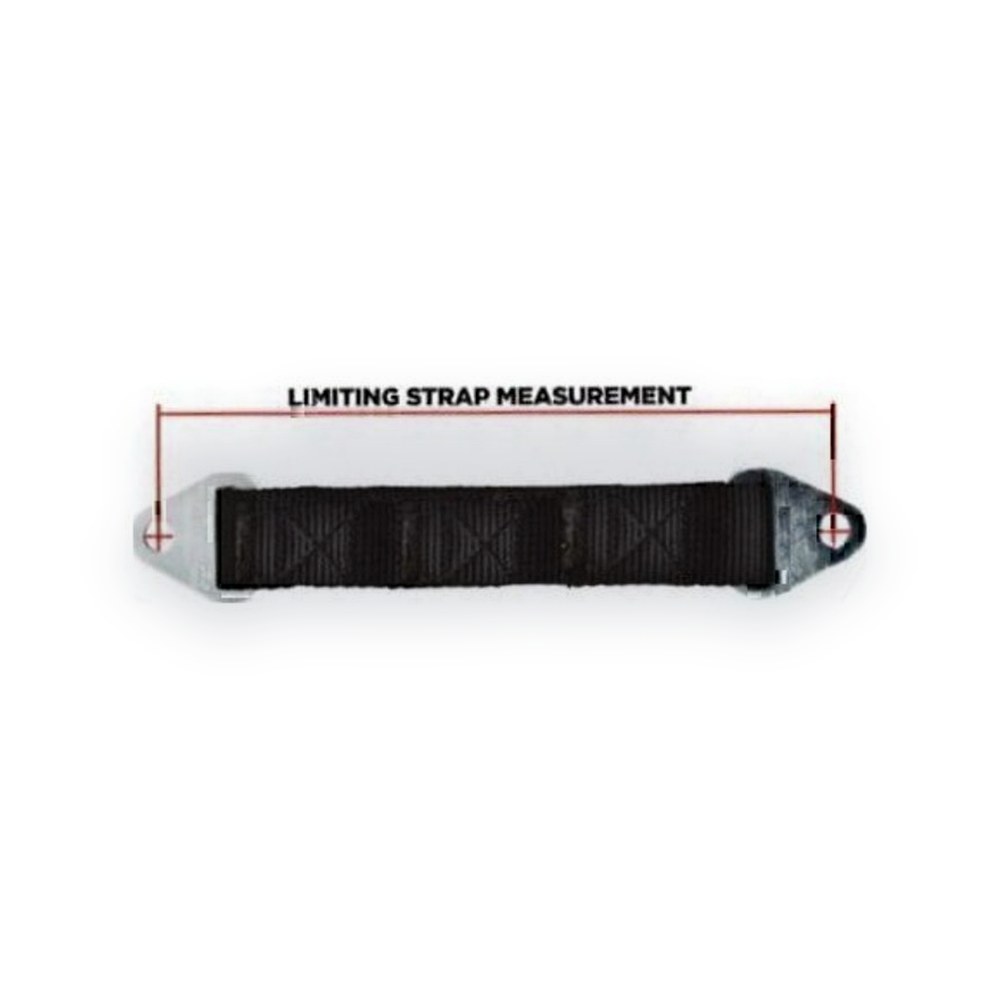

• Length eye-to-eye: 100mm (3.94 in)
• Total length end-to-end: 107mm (4.21 in)
• Nominal strap size: 8 x 2.3mm (0.31 x 0.09 in)
• Eyelet hole size: 3.3mm (0.13 in), for a 3mm screw

Notes

• The straps are made from 200 lb test nylon and have minimal stretch, so the length stays consistent.
• FITS:
• Tamiya Hi-Lift F350 Tundra HiLux, HPI Electric Wheely King 1/12, Axial AX-10 Scorpion Crawler, Axial SCX-10 Scale Truck, Losi 1:10 Comp Crawler, Losi 1:10 Night Crawler
