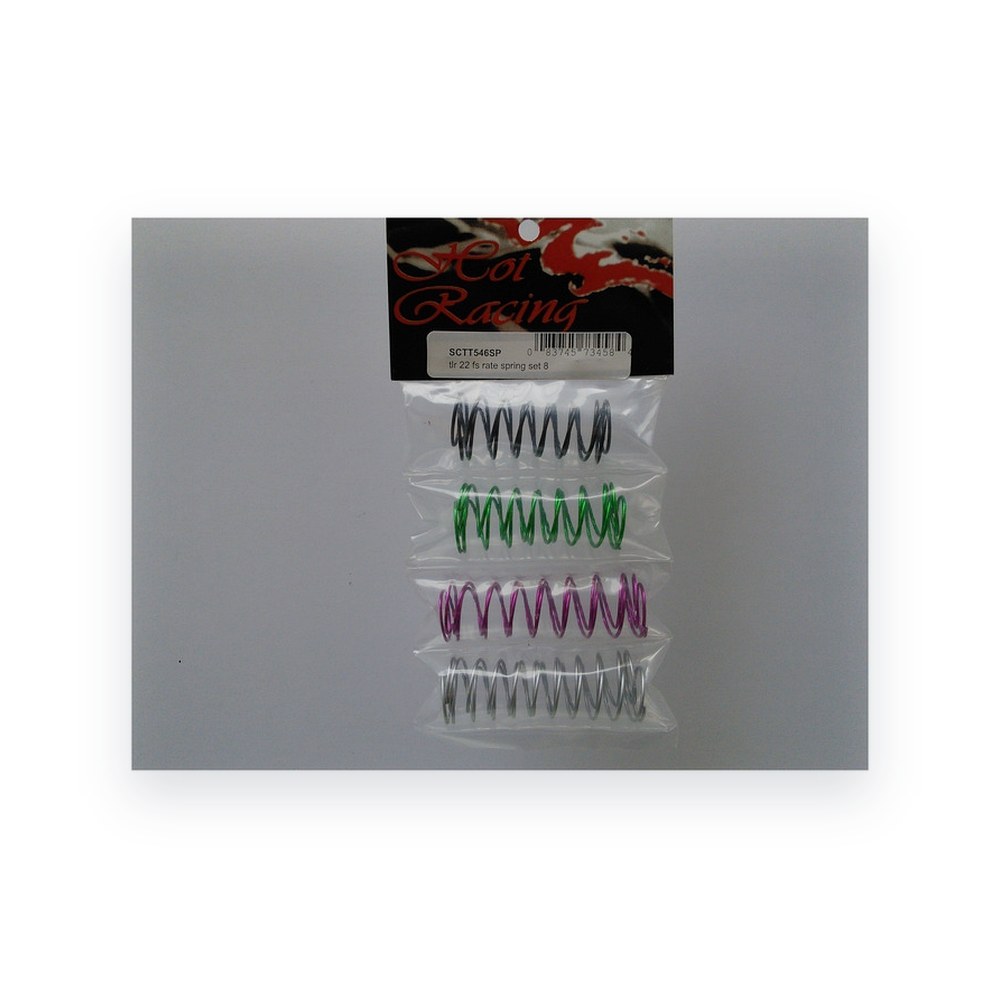

Hot Racing Tlr 22 Fs Rate Spring Set, Pack of 8

About this part

A set of factory-spec shock springs from Hot Racing for the Team Losi TLR 22, 22T, and 22SC. The cold-coiled steel springs are made to match the TLR factory spring specifications.

Features

• Cold-coiled spring steel
• Matches the TLR factory spring specifications
• SPRING RATES:
• Rear 1.8 rate (white in the TLR part list, listed as silver in the set), TLR5163
• Rear 2.3 rate (pink), TLR5168
• Front 3.5 rate (green), TLR5182
• Front 4.1 rate (black), TLR5184
• INCLUDED:
• Two (2) rear 1.8 rate springs (silver)
• Two (2) rear 2.3 rate springs (pink)
• Two (2) front 3.5 rate springs (green)
• Two (2) front 4.1 rate springs (black)

Specifications

• 4.1 rate: 1.2mm wire diameter, 48mm length, 8 turns (black)
• 3.5 rate: 1.2mm wire diameter, 53mm length, 9 turns (green)
• 2.3 rate: 1.1mm wire diameter, 64.5mm length, 9 turns (pink)
• 1.8 rate: 1.1mm wire diameter, 64.5mm length, 11 turns (silver)

Requirements

• Installed on the vehicle

Fits
