Hot Racing LCG Crawler Transmission for Axial SCX10, Scx2, Wraith 1.9

About this part

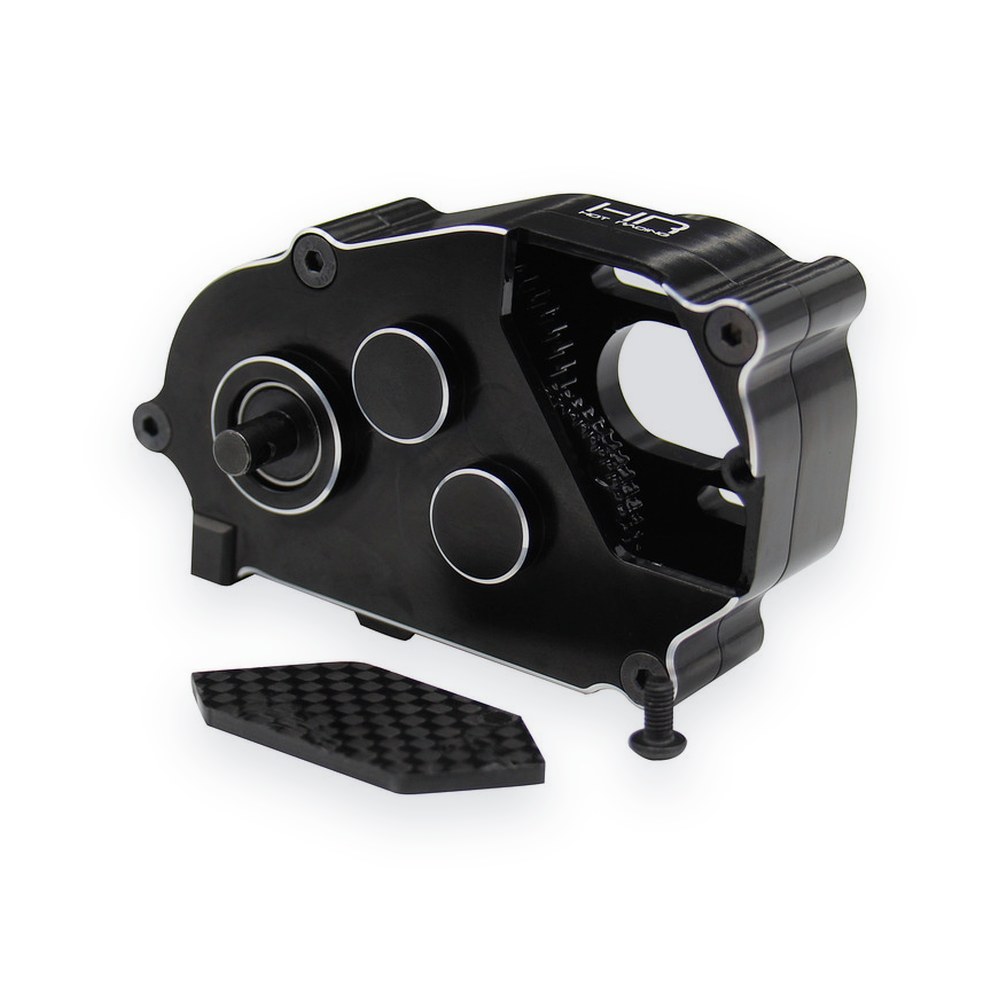

A low center of gravity crawler transmission from Hot Racing for the Axial AX10, SCX10, SCX2, Wraith 1.9, and similar RTR vehicles. The aluminum case houses hardened steel gears on full ball bearings, and it provides high gear reduction.

Features

• CNC machined 6061 aluminum case
• Hardened steel gears
• Full ball bearings
• High gear reduction: 11.4:1 internal reduction, in addition to the pinion and 52T spur reduction
• Supports 9T to 30T 48 pitch pinion gears

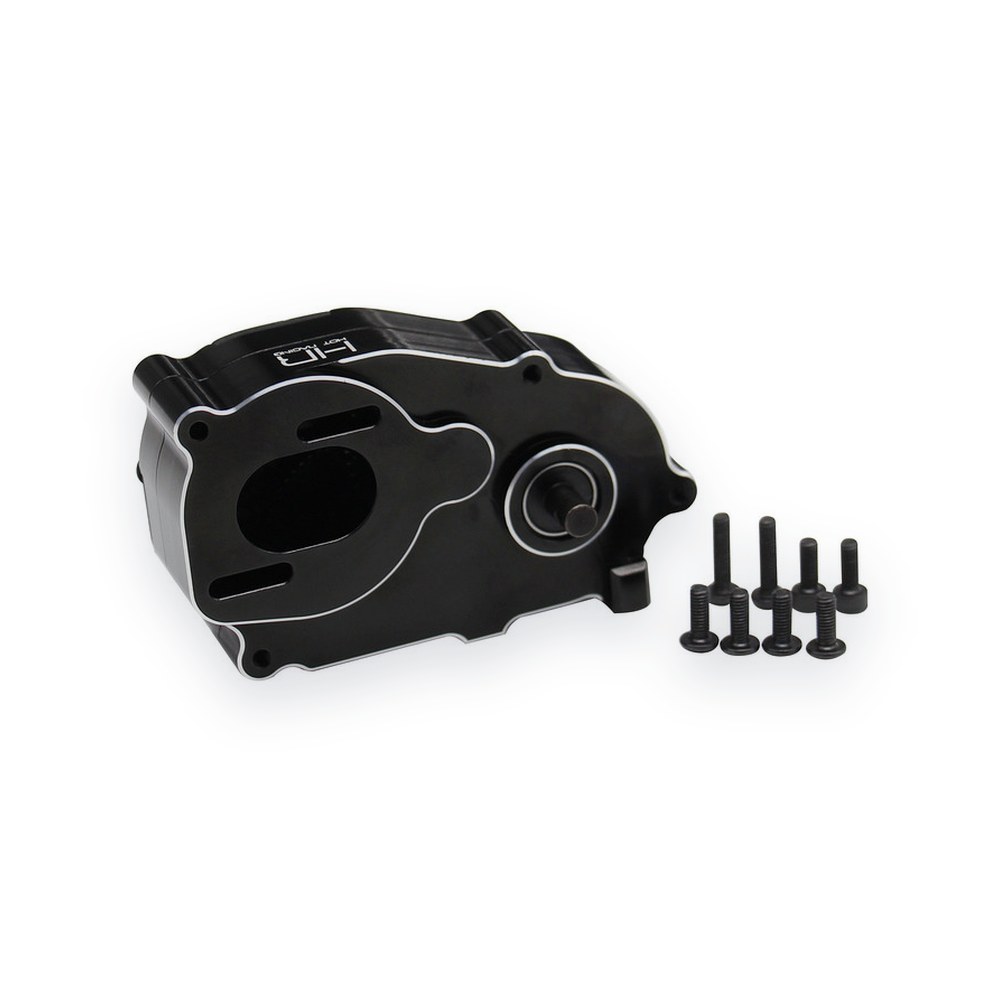

• INCLUDED:
• One (1) low CG transmission
• Four (4) M3x8mm flat head cap screws
• Two (2) M3x8mm button head cap screws

Requirements

• Vehicle variants differ, so additional axle trimming may be needed.
• Use black gear grease on the gear train.

Specifications

• Length: about 78.8mm, width: about 18.8mm, height: about 47.8mm

Notes

• A 12T, 48P pinion gives a 49.5:1 final drive ratio.
• Replacement parts include RSCP12SG (internal gear set; the output shaft and gear are different) and RSCP12CC (clear gear cover).
• Bearings: two 10x15x4mm, one 4x10x4mm, and three 5x10x4mm.
