Hot Racing Complete Steel Gear Transmission Gearbox for AX10, SCX10

About this part

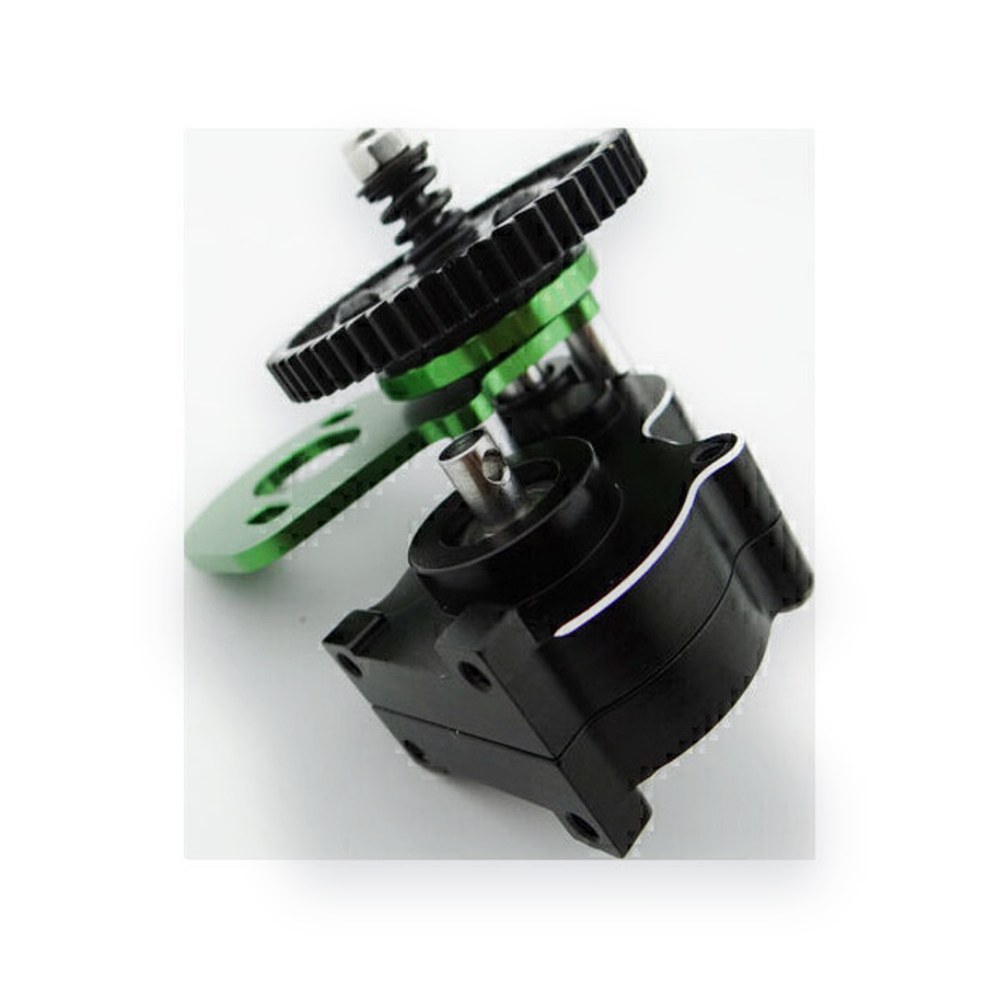

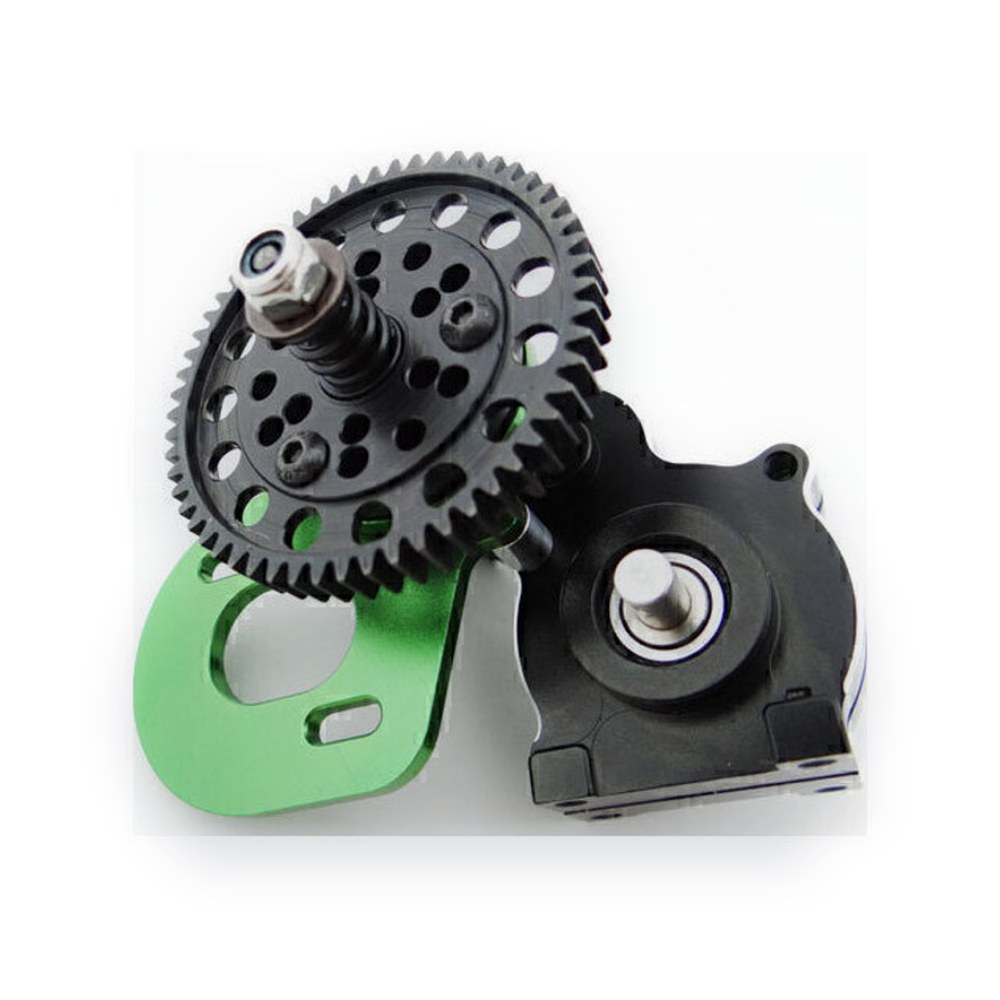

A complete all-metal center gearbox from Hot Racing, with a heavy-duty 32 pitch, 57 tooth spur gear. It is built for the Axial AX10, SCX10, Honcho, J33P, Dingo, and similar vehicles. It arrives assembled and ready to install.

Features

• Hardened steel spur gear and internal gears
• Fully sealed ball bearings
• Locked output gear
• Billet machined aluminum transmission case and motor mount
• Transmission case anodized black with beveled edges; motor mount plate and gear hub anodized green
• Super duty adjustable metallic-pad slipper system
• 32 pitch, 57 tooth steel main spur gear
• Stock bearing sizes, so parts are easy to replace if needed
• INCLUDED:
• One (1) complete transmission gearbox with spur gear
• COMPATIBILITY:
• Works with the Axial AX80078 stock gear cover and the Hot Racing SCP32X01 aluminum cover. The Axial AX80078 backplate is required for either cover.

Requirements

• A 0.8 module (32 pitch) pinion gear
• Simple hand tools

Notes

• Inspect all hardware before use, and use a removable locking adhesive on screws that thread into metal.
