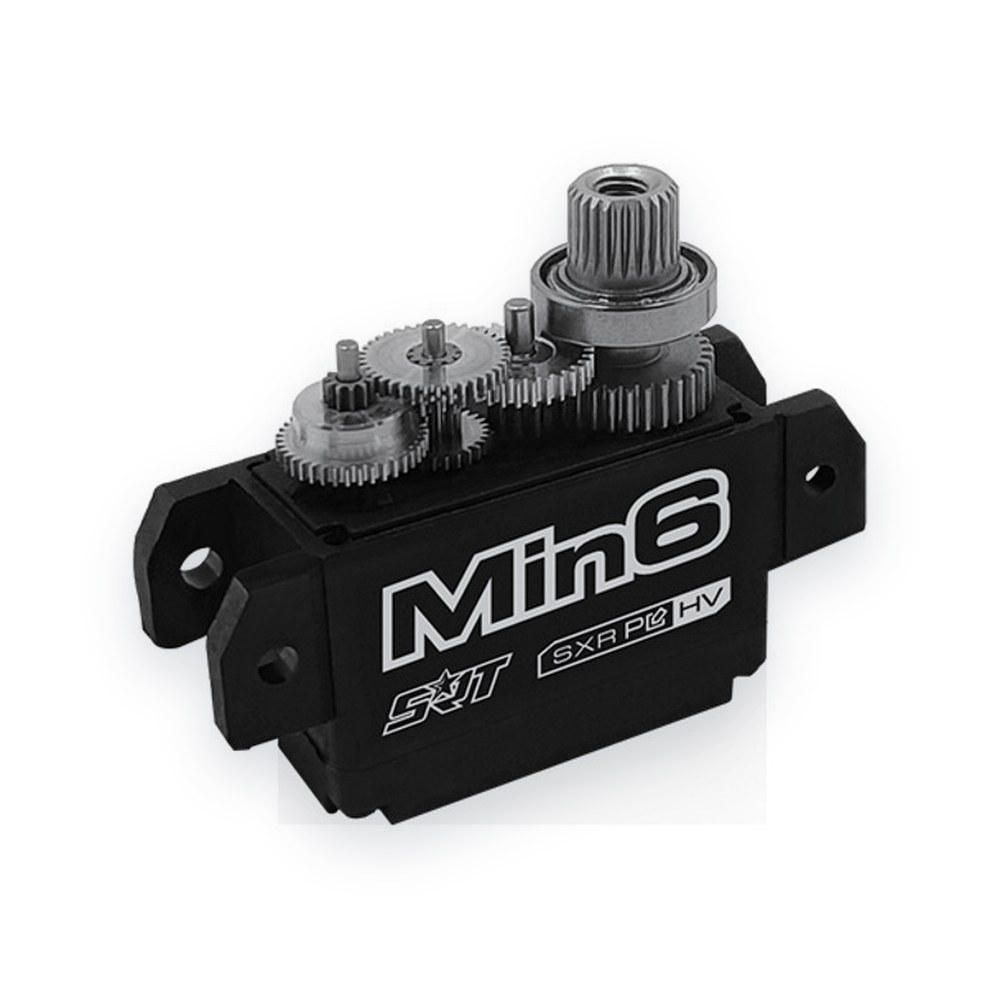

Schumacher SRT Min6 1/12 Pancar HV Coreless Servo

About this part

A 1/12 scale pancar servo with a coreless motor and metal gears. It supports the SXR, SFR, SR and SSR ultra high speed modes, and it draws very little power for its output.

Features

• 2 second dead band
• 1-year limited warranty

Specifications

• Type: digital
• Bearing: dual
• Motor: coreless
• Gear: metal, 7075 aluminum
• Control: pulse width
• Working frequency: 1520s / 333Hz
• Operating voltage: 4.8 to 8.4V DC
• Operating temperature: -10 to +60 degrees
• Speed at 4.8V: 0.100 sec/60 degrees, no load
• Speed at 6.0V: 0.080 sec/60 degrees, no load
• Speed at 7.4V: 0.070 sec/60 degrees, no load
• Speed at 8.4V: 0.062 sec/60 degrees, no load
• Stall torque at 4.8V: 5.0kg·cm (69.4 oz/in)
• Stall torque at 6.0V: 6.8kg·cm (94.4 oz/in)
• Stall torque at 7.4V: 8.0kg·cm (111.1 oz/in)
• Stall torque at 8.4V: 9.0kg·cm (125.0 oz/in)
• Potentiometer drive: direct

Dimensions

• 27.2 x 12.1 x 28.2 mm (1.07 x 0.48 x 1.11 in)
• Weight: 18.0g (0.63 oz)
• Connector wire length: JR, 170 mm
• Fits the Associated RC-12L, RC-12L3, RC-12L4, RC-12LW, RC-12R5 and RC-12R5.2.
