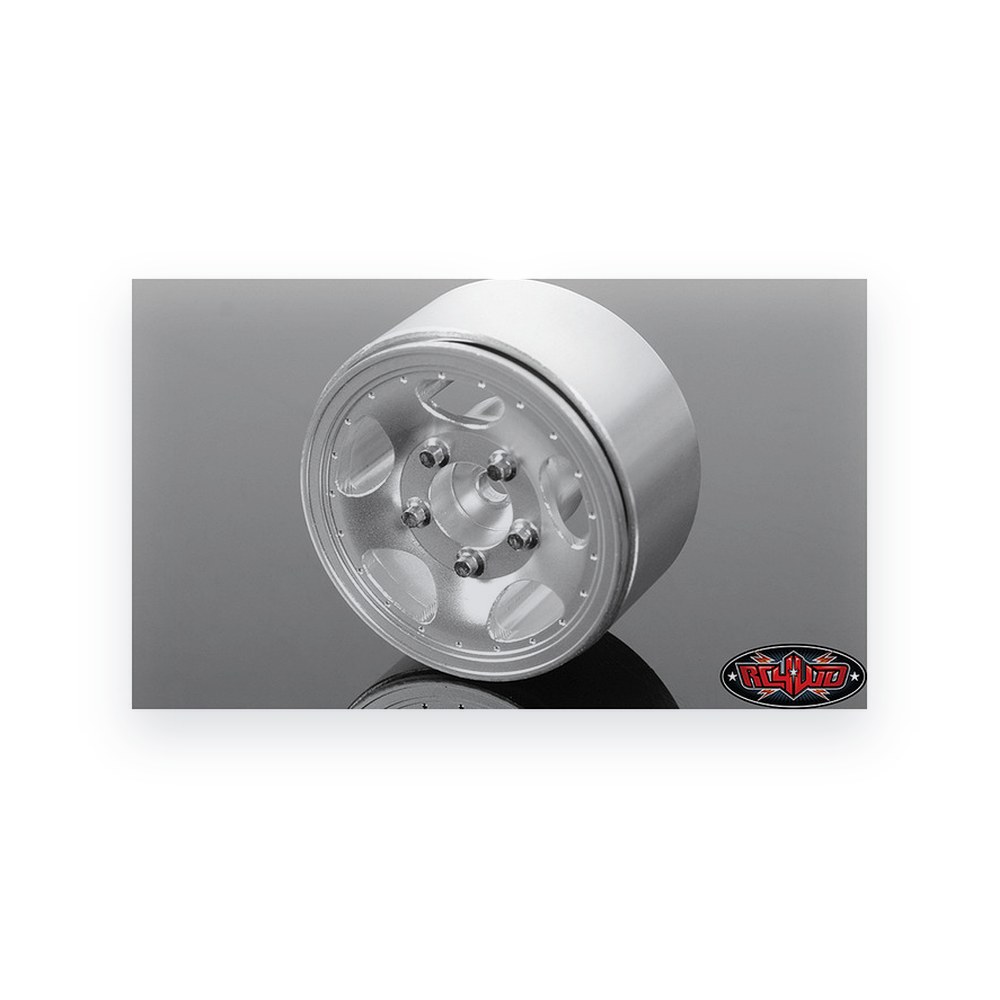

RC4WD Breaker 1.0 Beadlock Wheels, RC4WD-W0277

About this part

Breaker 1.0 in beadlock wheels from RC4WD. They are CNC-machined from billet aluminum with a silver anodized finish and fit a standard 7mm hex. Four wheels are included.

Specifications

• Wheel size: 1.0 in, fits 1.0 in tires
• Outer diameter: 1.09 in / 27.5 mm
• Width: 0.60 in / 15.2 mm
• Center hole OD: 0.1 in / 2.5 mm
• Positive offset: 0.27 in / 7.0 mm
• Weight each: 0.46 oz / 13.1 g
• IN THE BOX:
• Four RC4WD Breaker 1.0 in beadlock wheels
• One miniature scale hex bolt tool for M1.6 scale bolts (1.5mm hex)
• REPLACEMENT HARDWARE:
• Steel flat head socket cap screw, M2 x 6mm, black (Z-S1518)
• RC4WD miniature scale hex bolts, M1.6 x 2mm, silver (Z-S1809)
• Miniature scale hex bolt tool for M1.6 scale bolts, 1.5mm hex (Z-S1328)

Notes

• Fits the RC4WD 1/18 Gelande II RTR with D90 body set (blue) (Z-RTR0039), BlackJack body set (Z-RTR0036), Black Rock body set (Z-RTR0037), and D90 body set (black) (Z-RTR0038).
• Tire and wheel designs vary between manufacturers, so RC4WD can only confirm that its own tires and wheels work together. Other brands may work, but results are not guaranteed.
