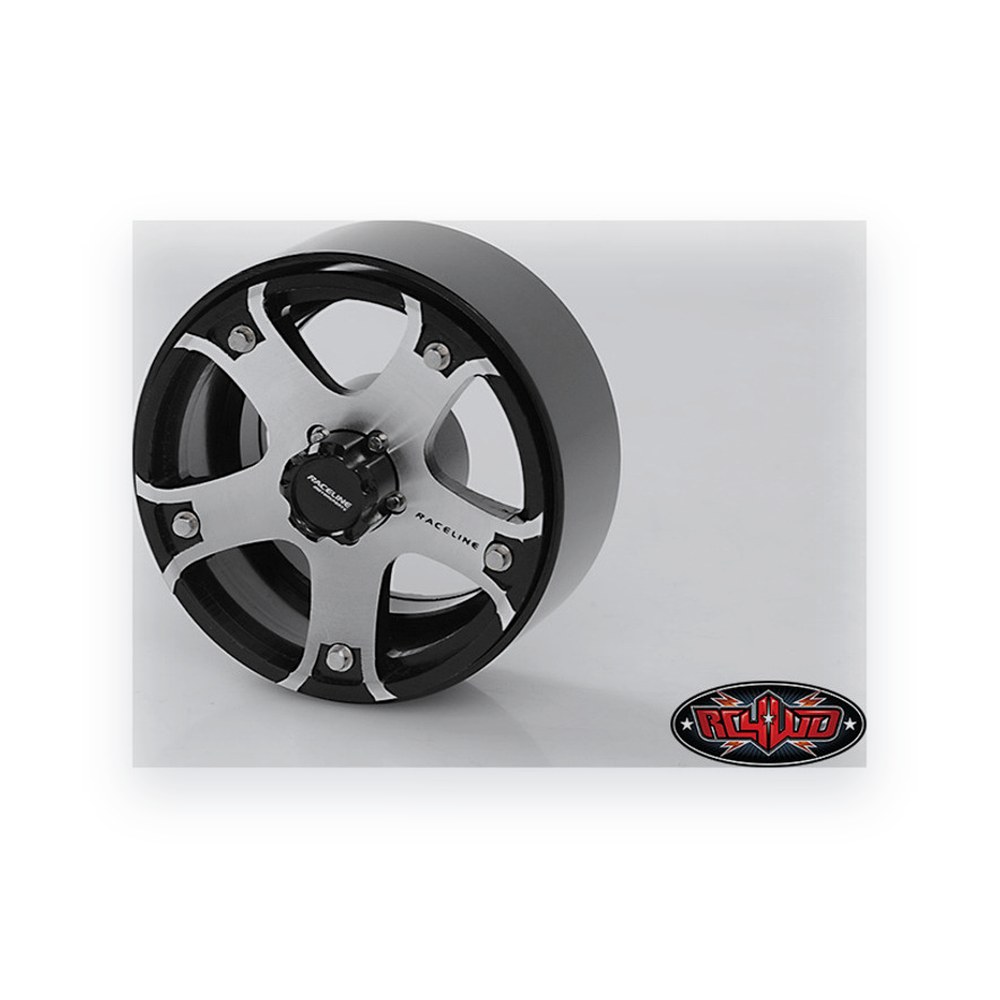

RC4WD Raceline Gunner Beadlock Wheels, 1.7 (4)

About this part

Raceline Gunner 1.7 in beadlock wheels, four to a pack, from RC4WD. They are CNC-machined from billet aluminum with a black anodized finish and a scale wheel nut cover marked with the Raceline logo. The scale hex bolts give a realistic look.

Specifications

• Fits standard 12mm hex
• Wheel size: 1.7 in
• Outer diameter: 1.7 in / 44 mm
• Width: 0.93 in / 23.7 mm
• Center hole OD: 0.16 in / 4.1 mm
• Positive offset: 0.3 in / 12 mm
• Weight each: 1.72 oz / 49 g
• IN THE BOX:
• Four Raceline Gunner 1.7 in beadlock wheels
• One miniature scale hex bolt tool for M2.5 and M3 scale bolts (2.5mm hex) (Z-S0635)
• One miniature scale hex bolt tool for M1.6 scale bolts (1.5mm hex) (Z-S1328)
• Four special 12mm axle wheel hexes
• Four M4 nylock nuts, silver (Z-S1265)
• Four M3 x 3mm set screws
• Two M2.5 x 12mm FHSC, black
• One Raceline decal sheet
• REPLACEMENT HARDWARE:
• Twenty M1.6 x 4mm hex bolts, silver (Z-S1124)
• Twenty M2 x 5mm hex bolts, silver (Z-S0624)
• Thirty-two M2.5 x 5mm FHSC, black

Notes

• Tire and wheel designs vary between manufacturers, so RC4WD can only confirm that its own tires and wheels work together. Other brands may work, but results are not guaranteed.
