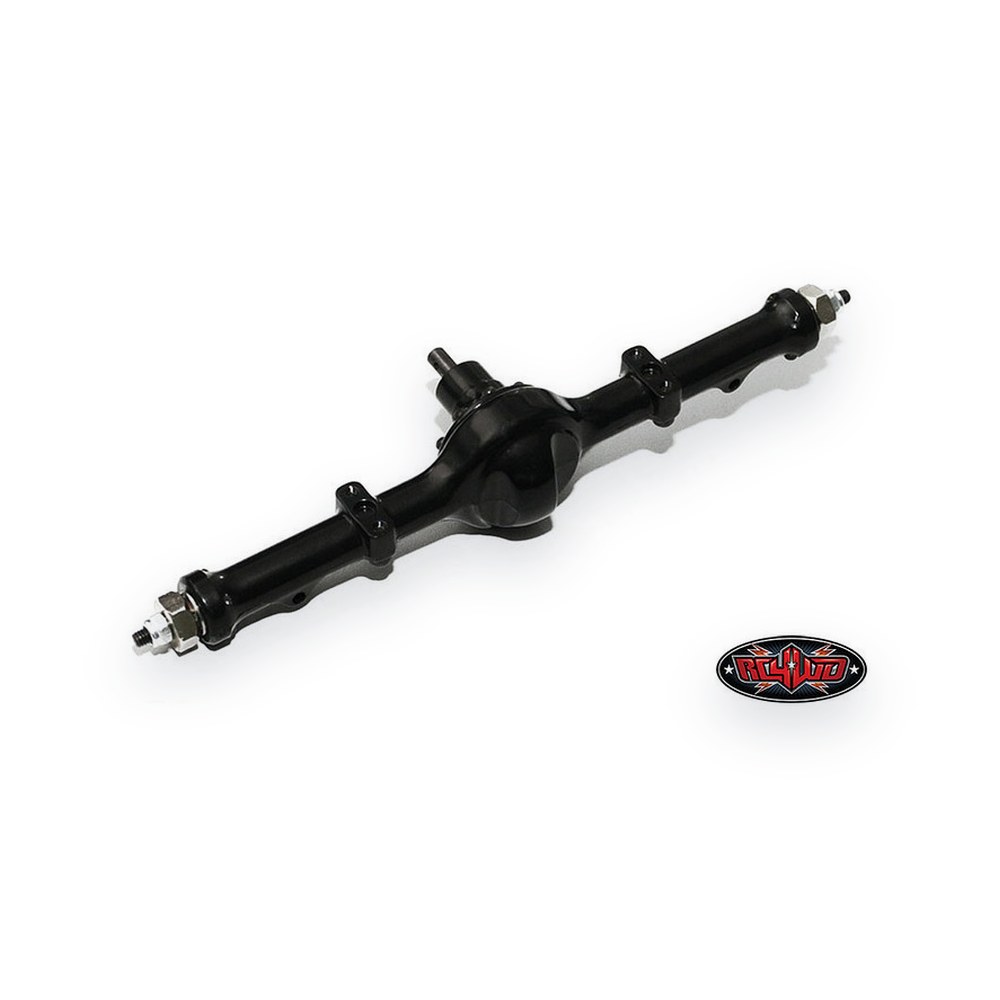

RC4Z-A0061RC4WD Yota Ultimate Scale 1.9 Cast Straight Rear Axles
RC4WD Drive-train: shafts and axles
$67.49
Out of stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked: this one just sold out — check back soon.
About this part
A cast straight rear axle for 1:10 scale trail trucks, from the RC4WD Yota line. It is built to a highly detailed scale standard. The removable center cap and diff housing, the lower mounts that allow shocks to go front or back, and the compact offset pumpkin all reflect that detail. It is engineered by Fracture in New Zealand and manufactured by RC4WD.
Features
- Die cast, lightweight metal housing
- Hardened steel spool gears
- 5mm axle output shaft
- Full ball bearings
- Black powder coat finish
- Designed for 1:10 scale trucks

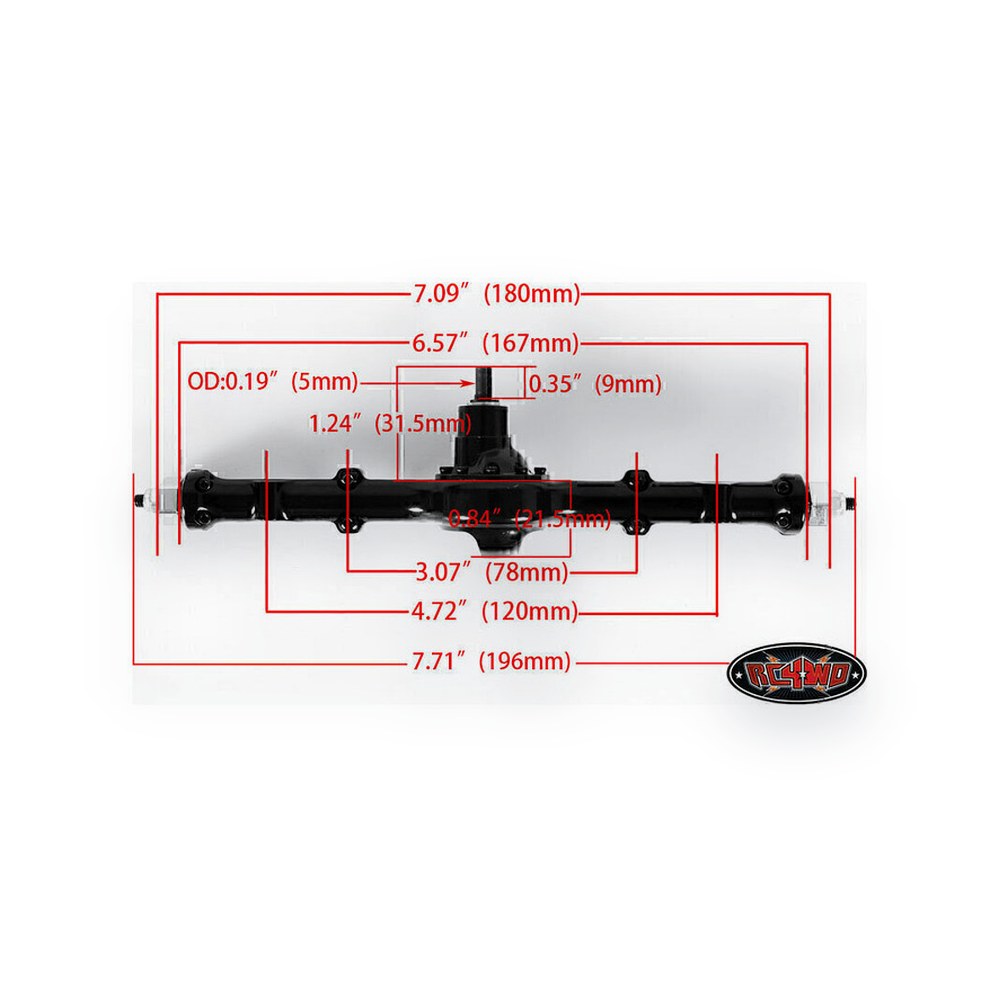

Specifications
- Hex to hex width: 179mm / 7.04in
- Pin to pin width: 168mm / 6.61in
- Total width: 180mm / 7.09in
- Pumpkin height: 35.8mm / 1.4in
- Leaf mount width: 78mm / 3.07in
- Gear ratio: 2.67:1
- Output shaft OD: 5mm / 0.19in
- Hex: 12mm steel
- Weight: 1441g / 4.95oz
- FITS:
- RC 4WD Terrain
