Hot Racing Steel Mod 1 Pinion Gear, 39t, 8mm Bore

About this part

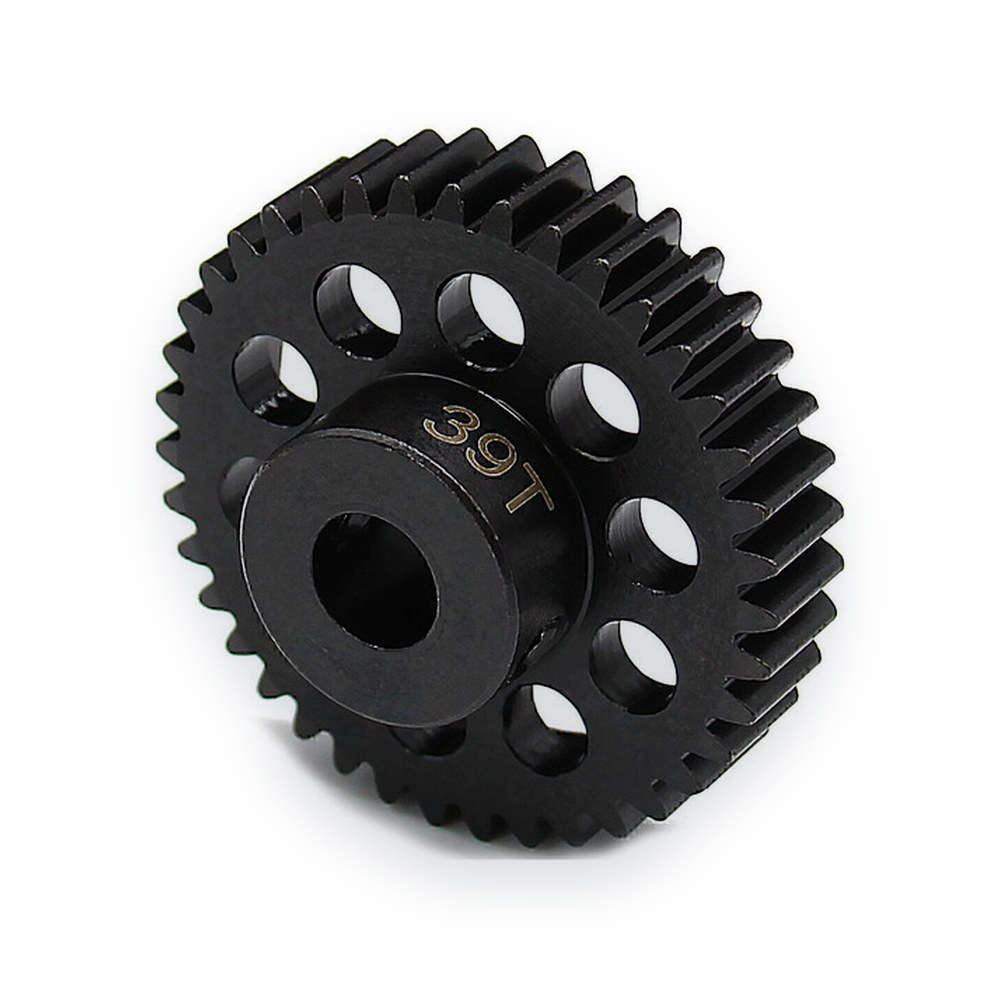

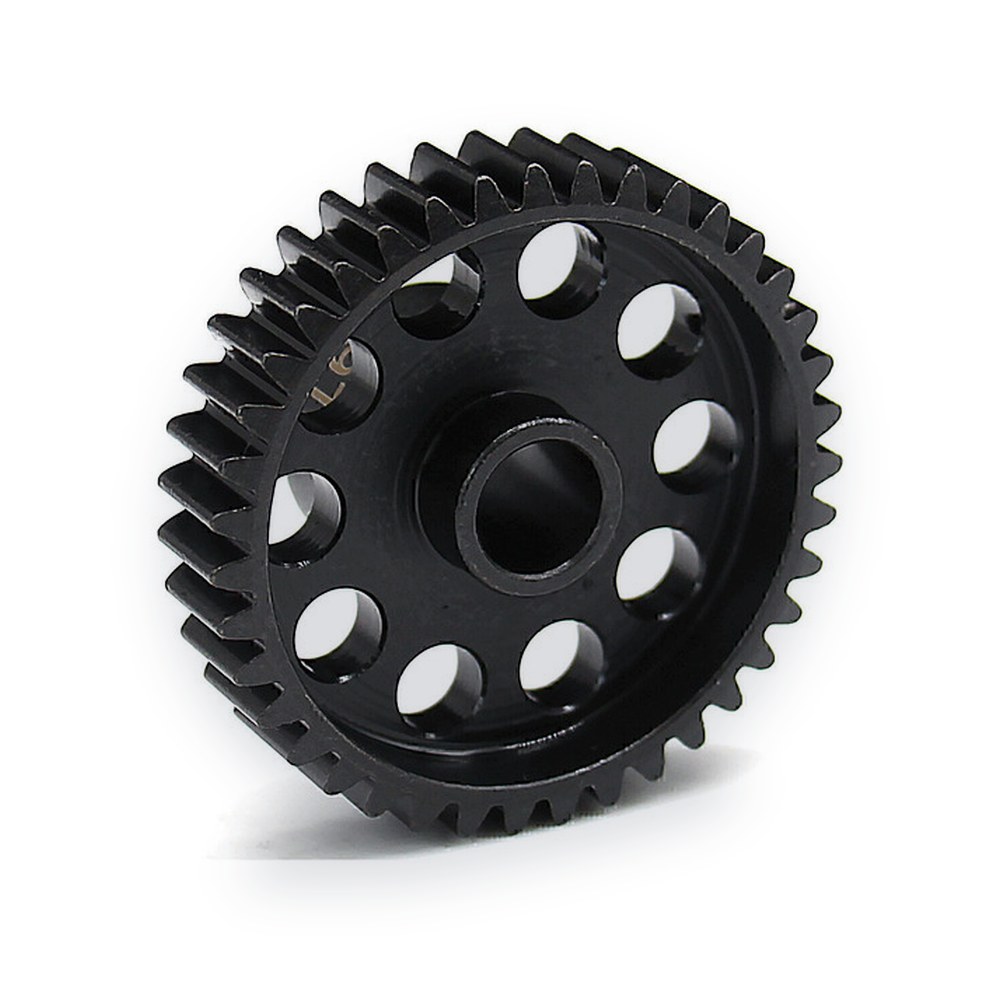

Hardened steel 39-tooth Mod 1.0 pinion gear with an 8mm bore, intended for large scale vehicles and other applications. It is precision CNC machined and finished with a black oxide coating for corrosion resistance. IN THE BOX: One 39T Mod 1.0 pinion gear and two M6x6mm set screws BEFORE YOU START: Use medium blue thread lock on the set screw. You will need a 3mm hex wrench. Only one set screw is needed for installation.

Specifications

• Teeth: 39
• Pitch: 1.0 module, length 17
• Gear face width: 9mm
• Bore diameter: 8mm
• FITS:
• Arrma 1:7 Big Rock 6S
• Arrma 1:7 Felony
• Arrma 1:7 Infraction
• Arrma 1:7 Limitless
• Arrma 1:7 Mojave
• Arrma 1:8 4x4 Kraton BLX 6S V5
