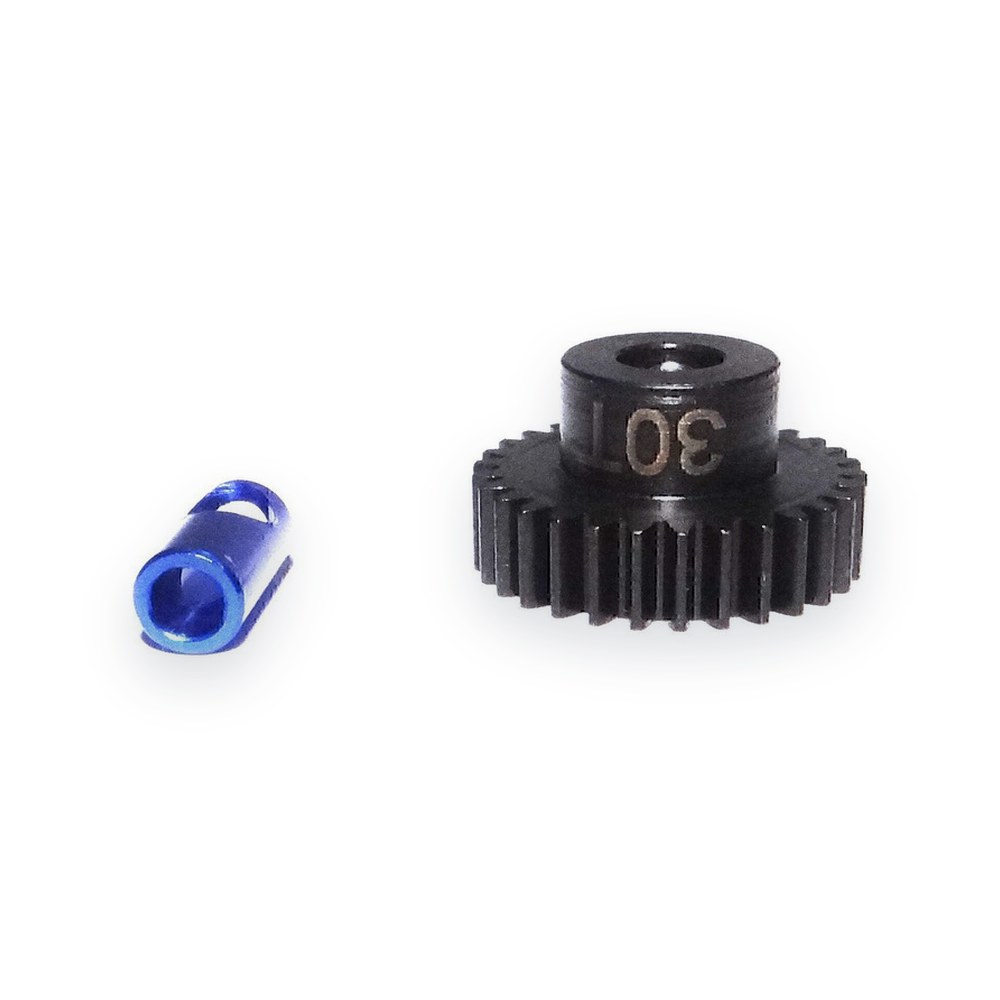

Hot Racing 30t Pinion Gear, Steel, Mod 0.6, 5mm

About this part

Hot Racing 30-tooth, 0.6 module (about 42P) steel pinion gear for 5mm or 1/8in motor shafts. It is CNC machined from steel with a black nitride finish, and the tooth count is laser marked. The long hub gives maximum contact with the motor shaft.

Features

• Heavy duty 4mm set screw
• Includes a 5mm to 1/8in conversion sleeve for either shaft size

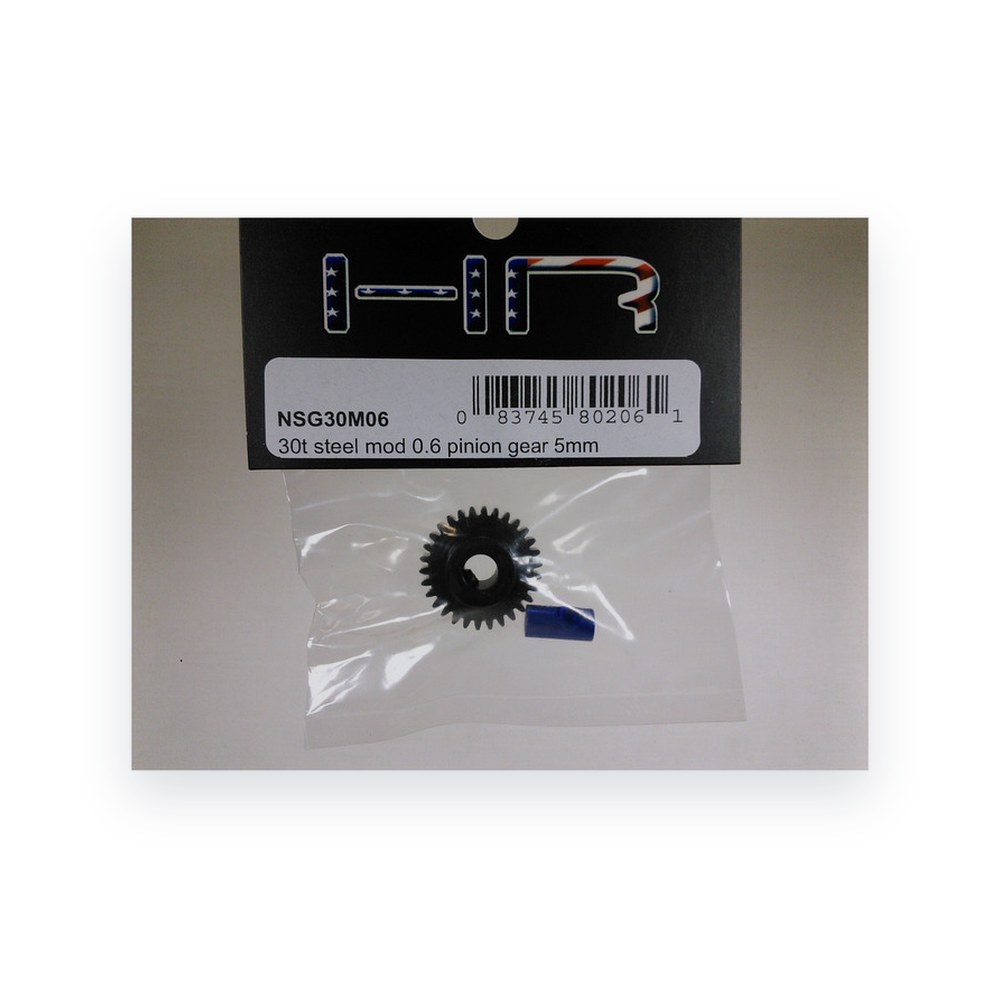

• IN THE BOX:
• One 30T, 0.6 module pinion gear, one M4x4mm set screw, and one 5mm to 1/8in conversion sleeve
• BEFORE YOU START:
• A 2mm hex wrench is needed for the set screw. A removable blue thread lock is recommended on the set screw.

Specifications

• Teeth: 30
• Pitch: 0.6 module (about 42P), length 10.4mm
• Outside diameter: 19.2mm
• Tooth face width: 5mm
• FITS:
• OFNA Hyper 9 Buggy

Fits
