Hot Racing 27t Pinion Gear, Steel, Mod 0.6, 5mm

About this part

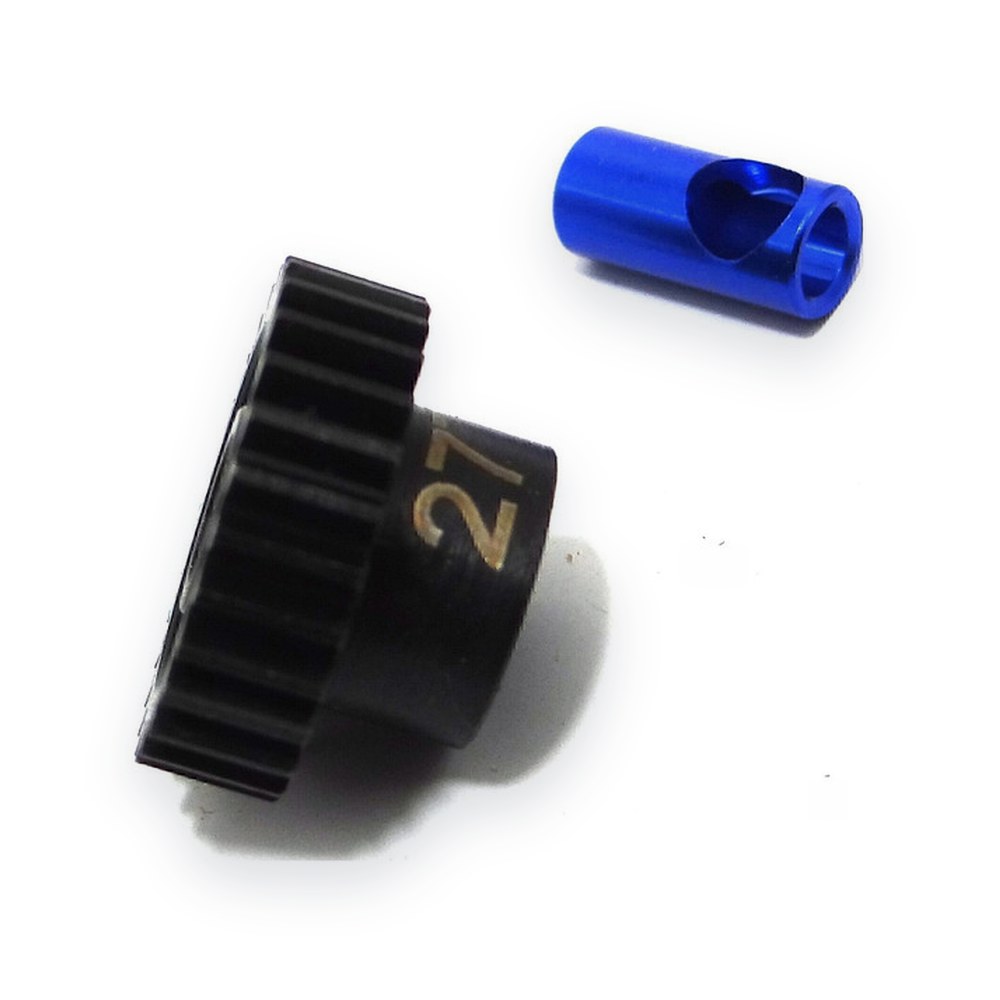

Hot Racing 27-tooth, 0.6 module (about 42P) steel pinion gear for 5mm or 1/8in motor shafts. The gear is CNC machined from steel with a black nitride finish, and the tooth count is laser marked on the face. Its long hub gives maximum contact with the motor shaft.

Features

• Heavy duty 4mm set screw
• Includes a 5mm to 1/8in conversion sleeve so one gear covers both shaft sizes
• IN THE BOX:

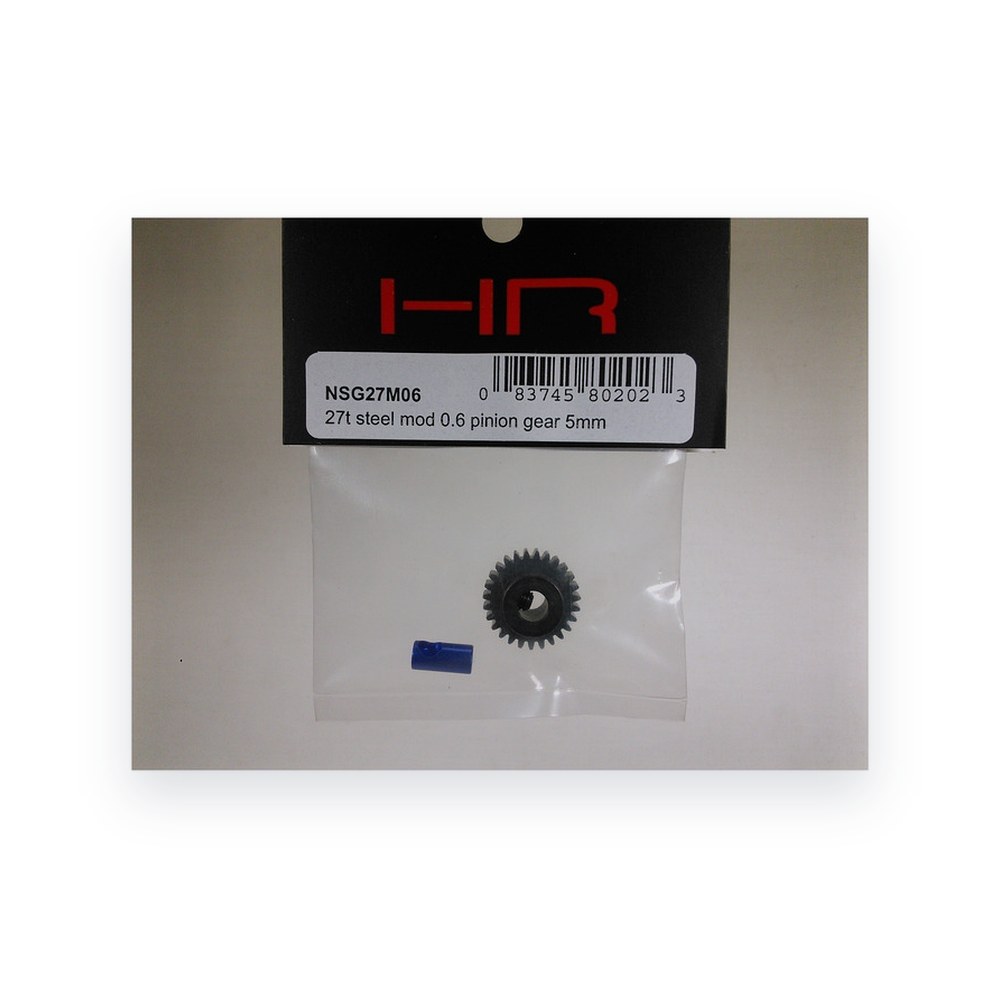

• One 27T, 0.6 module pinion gear, one M4x4mm set screw, and one 5mm to 1/8in conversion sleeve
• BEFORE YOU START:
• A 2mm hex wrench is needed for the set screw. A removable blue thread lock is recommended on the set screw.

Specifications

• Teeth: 27
• Pitch: 0.6 module (about 42P), length 10.5mm
• Outside diameter: 17.3mm
• Tooth face width: 5mm
• FITS:
• HPI Electric E10
• Tamiya Bruiser
• Tamiya CR-01 Crawler FJ40
• Tamiya F-150/S-10
• Tamiya FF-03
• Tamiya Hi-Lift: F350 Tundra HiLux
