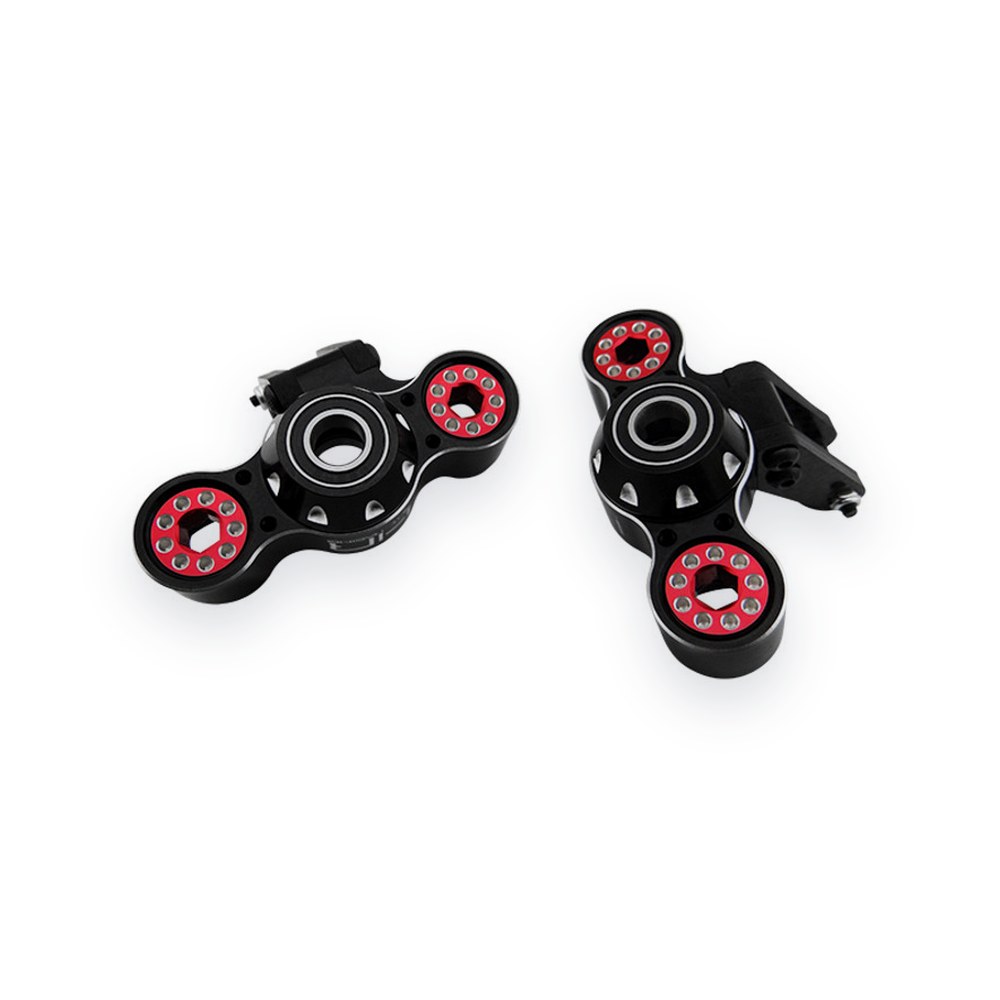

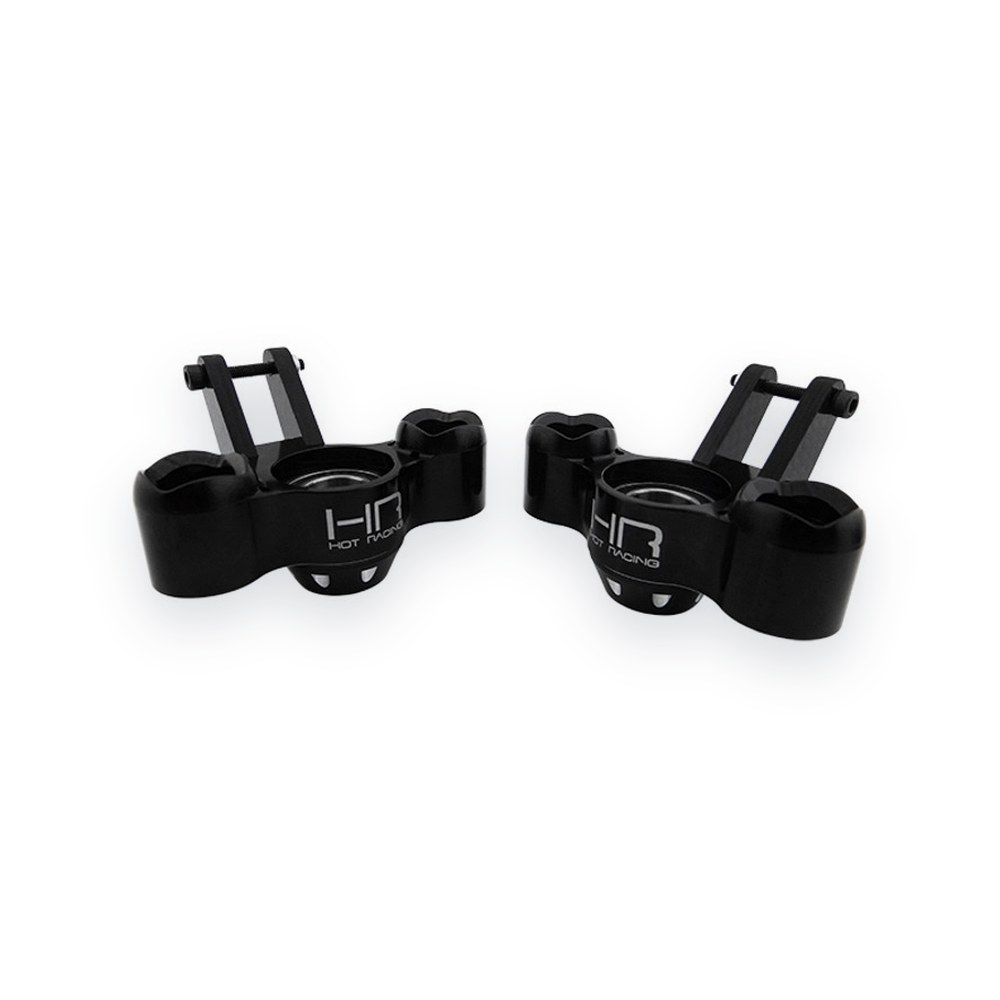

Hot Racing Fazon Bigrock Nero Steering Blocks, Aluminum with HD Bearings

About this part

Heavy duty front steering blocks for 1/8 Arrma BLX trucks. The blocks are CNC machined aluminum, anodized black, and come with 4mm carbon fiber steering arms that have an integrated nut for easy tie-rod installation. The hub nuts are aluminum with Delrin cups and o-ring position locks. Oversized heavy duty inner bearings and rubber sealed bearings are included. IN THE BOX: Left front steering block with carbon fiber steering arm Right front steering block with carbon fiber steering arm Four aluminum hub nuts Two 12x21x5mm rubber sealed inner bearings Two 8x16x5mm rubber sealed outer bearings

Requirements

• 6mm hex wrench for the hub nuts
• Installation per the vehicle manual

Specifications

• Weight: 53g per steering block
• Inner bearings: 12x21x5mm (stock is 12x18x4mm)
• Outer bearings: 8x16x5mm (stock is 8x16x5mm)

Notes

• Replaces the plastic Arrma AR330361 steering blocks. Replacement parts are the Hot Racing NRO2122N02 hub nuts and RNRO21G carbon fiber arms.
• FITS:
• Arrma 1:8 4x4 Fazon BLX 6S
• Arrma 1:8 4x4 Nero BLX 6S

Fits

Replaces stock part
