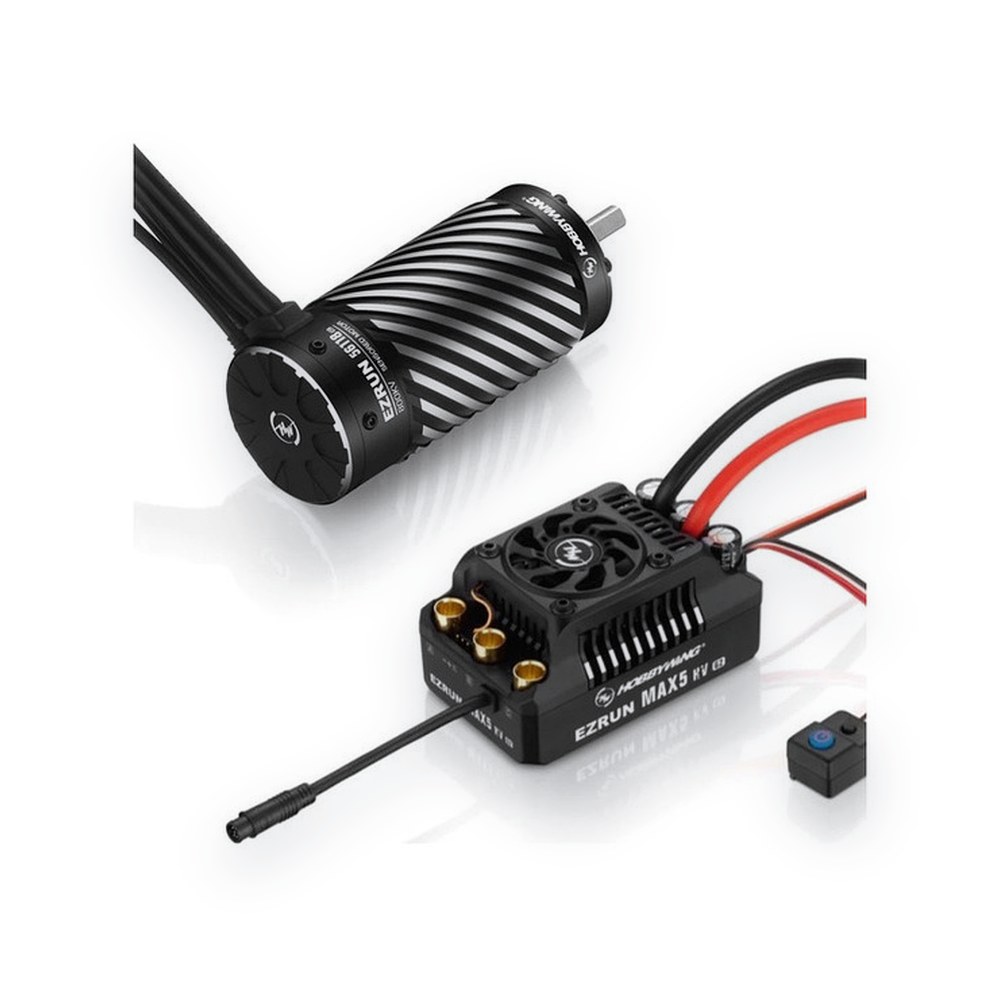

Hobbywing Combo: Max5 Hv G2 Esc with G2-56118sd Motor, 800kv

About this part

• Combo of the MAX5 HV G2 ESC and 56118SD G2 motor, rated 800KV.
• ESC

Specifications

• Continuous / peak current: 250A / 1600A
• Motor type: sensored or sensorless brushless
• Application: 1/5th buggy and truck
• Motor limits*: KV below 1200 with 8S LiPo, KV below 800 with 12S LiPo, KV below 800 with a 56118 size motor
• BEC output from 6-12S LiPo: 6V / 7.4V / 8.4V adjustable, 8A continuous (switch-mode)
• Size / weight: 94.5 (L) x 59.4 (W) x 50.9 (H) mm / 428.5g, including input wires
• MOTOR

Specifications

• KV: 800KV
• LiPo range: 8-12S
• No-load current: 6.9A
• Diameter x length: 56mm x 119.2mm
• Shaft diameter: 8mm
