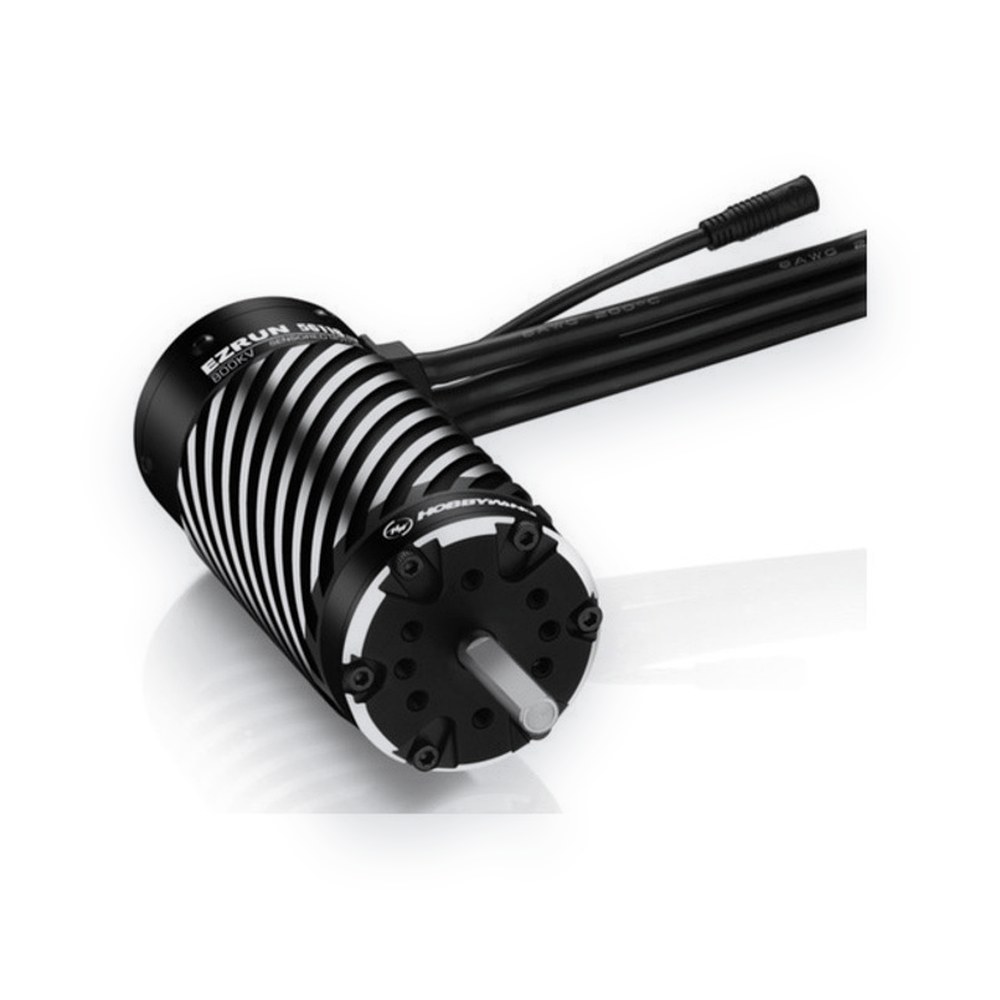

Hobbywing Ezrun 56118 G2 Motor, 800kv

About this part

Ezrun 56118 G2 brushless motor, 800KV.

Features

• A new waterproof sensor cable and sensored system improve acceleration linearity and output over the previous generation.
• Paired with the Hobbywing EZRUN MAX5 G2 ESC, the motor is recognized automatically and runs full sensor mode, for finer control and motor overheat protection.
• An independent high-precision encoder gives a pure rotor position signal and stable sensor-mode operation.
• CNC-machined aluminum housing, high-purity copper windings, a high-strength explosion-proof rotor, ultrathin silicon steel laminations, a stainless steel output shaft, and high-precision bearings add to durability and smoothness.
• The sensor interface and rubber-covered bearings offer better waterproofing and dust protection than traditional sensored motors.

Specifications

• LiPo Cells: 8-12S
• No-load Current: 6.9A
• Diameter: 56mm (2.20")
• Length: 119.2mm (4.69")
• Shaft Diameter: 8mm
