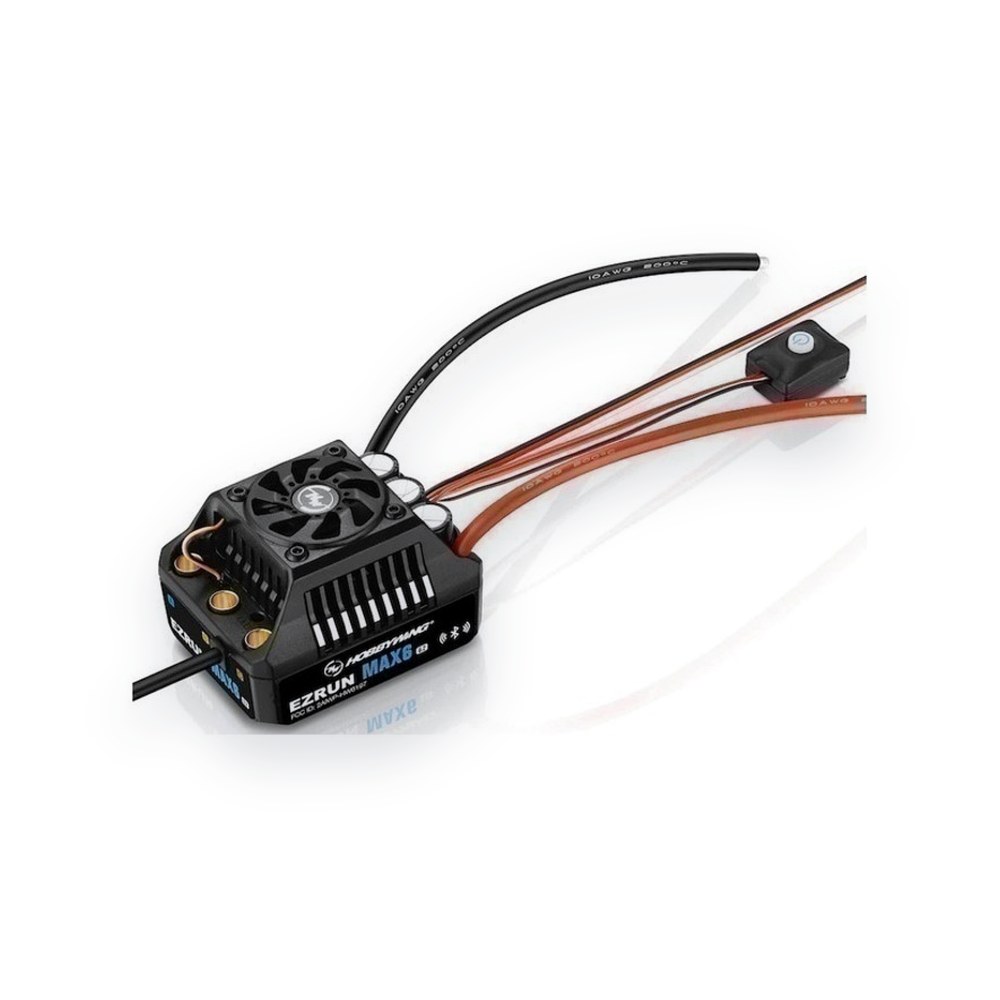

Hobbywing Ezrun Max6 G2 ESC, 3-8s

About this part

The ESC has an innovative waterproof sensor interface that improves overall waterproof and dustproof performance. It handles harsh conditions including sediment, ice, snow and water accumulation. Built-in switch mode BEC with 8A continuous and 25A instant output, switchable between 6V, 7.4V and 8.4V for a wide range of powerful, high-voltage servos. Supports turbo timing. Timing response is strong with a matching motor, such as the EZRUN 4990 G2 or 5690 G2 sensored brushless motor. Protections: battery low voltage, ESC and motor overheat, signal loss and current. The built-in Bluetooth, integrated into the switch, lets you set up and upgrade the ESC from the mobile app with no additional device. Data logging to view running data in the HW LINK app. Firmware upgrades are supported.

Features

• Current continuous/peak: 200A/1200A
• Sensored or sensorless motors
• 3-8S LiPo capable
• 6S: KV=2400 / 8S: KV=1700
• BEC: 6V, 7.4V or 8.4V
