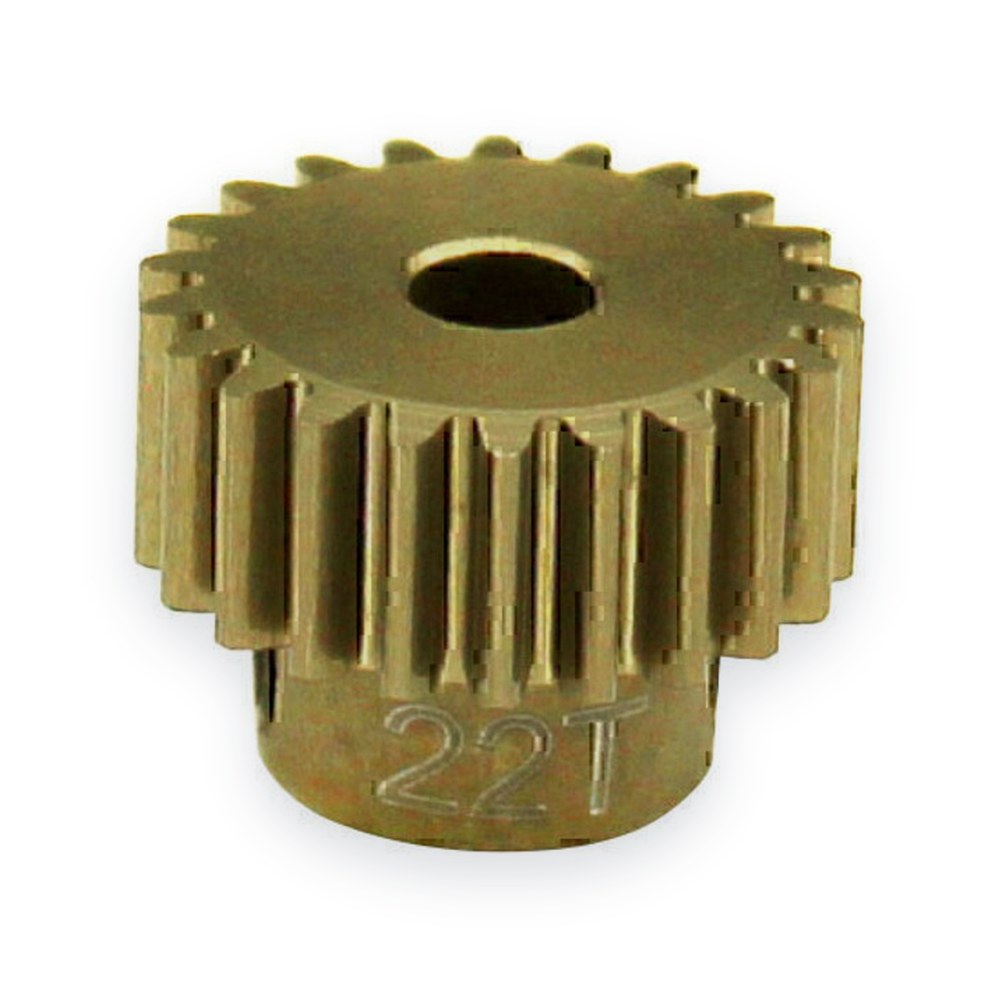

Hot Racing 48p Pinion Gear, 22t, Hard Anodized 7075

About this part

A 22-tooth, 48-pitch racing pinion gear made from hard anodized 7075 aluminum by Hot Racing. Listed as a general universal fit for hobby car parts.

Features

• CNC machined from 7075 aluminum with a short shank

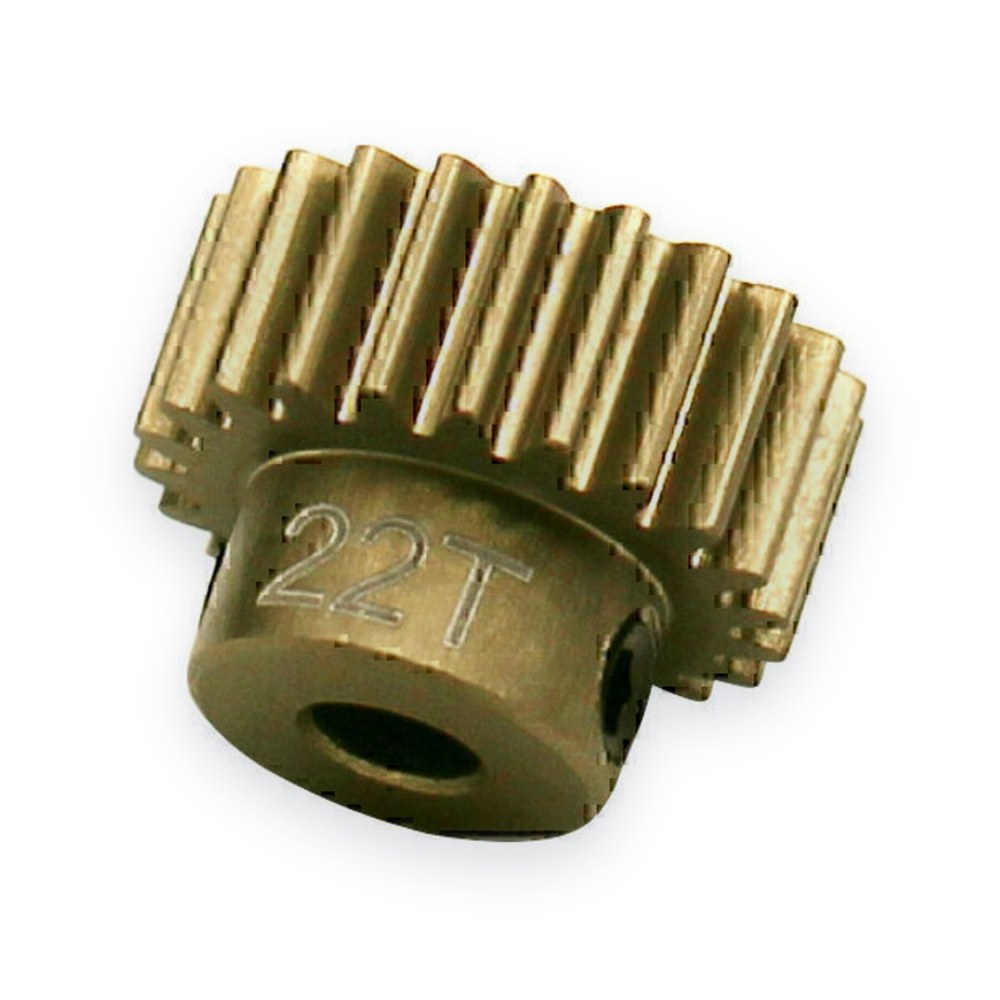

• Tooth count is stamped on the gear for quick identification
• Hard anodized surface, an electrochemically formed grey layer of aluminum oxide
• WHAT YOU RECEIVE:
• One pinion gear and one M3 set screw

Requirements

• An Allen wrench or ball driver is needed for mounting

Specifications

• Tooth count: 22
• Pitch: 48
• Tooth width: 5mm
• Gear width: 9.2mm (0.36 in.)
• Inner diameter: 3.175mm (0.125 in.)

Notes

• Suited to most applications that call for a 48-pitch pinion.

Fits
