G-Made Xd Aeration Shock, 62mm

About this part

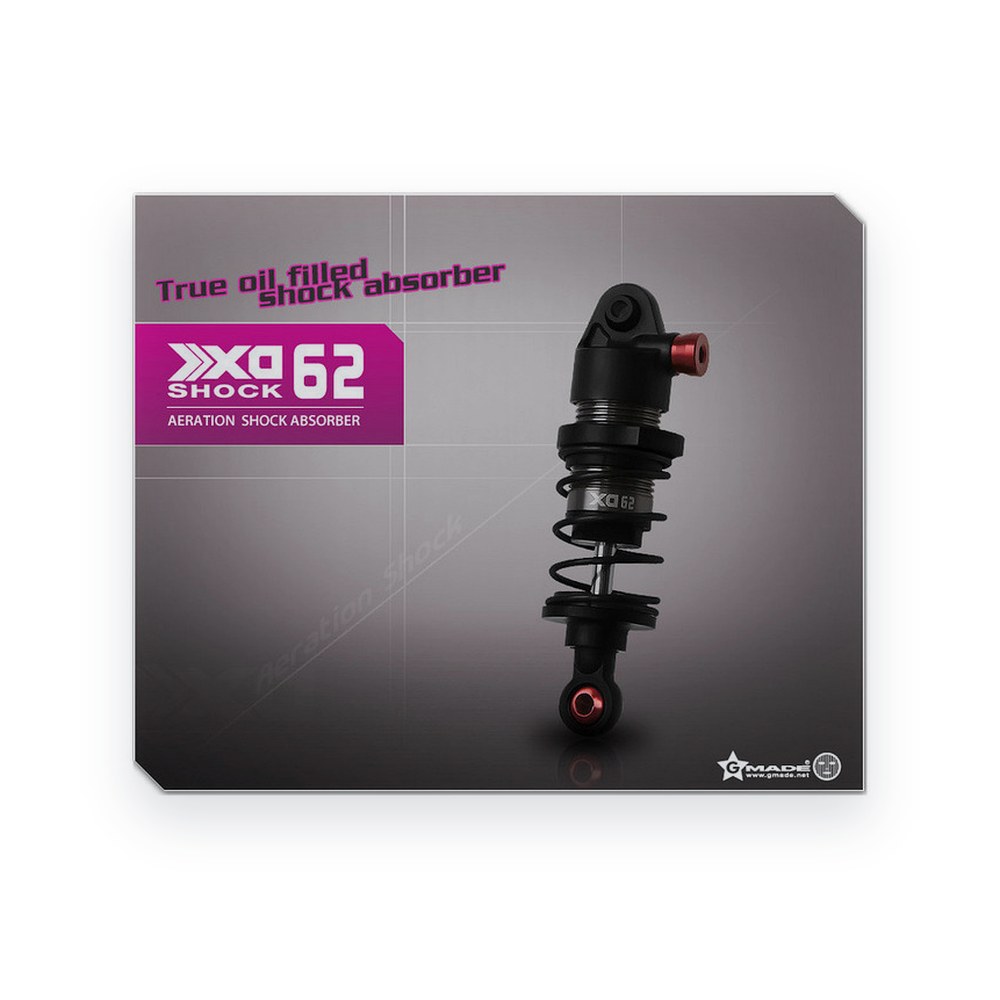

A G-Made aeration shock at 62mm mounting hole to hole. The emulsion design mixes oil with air. It is simple to build and handles bumps, jumps, landings, and rough ground well. It is made for 1/10 scale trucks and rally cars, such as the Tamiya CC01, DF03RA, and Wild Willy. Listed fitments include the Axial SCX-10 II, Traxxas TRX-4, HPI Electric Venture FJ Cruiser, Axial SCX-10 II RTR and Deadbolt, and Cross RC SG-4 4x4 Demon.

Features

• CNC-machined aluminum shock bodies and aeration screws
• Titanium gray anodized shock bodies and red anodized aeration screws
• Lower shock ends include red anodized aluminum balls
• Fully threaded for quick adjustment
• Delrin pistons and 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy-load seal assembly
• Laser engraved for authenticity
• INCLUDED:
• Titanium gray anodized aluminum shock bodies x 2
• Red anodized aluminum aeration screws x 2
• Shock springs x 2
• All hardware needed to finish the shocks
• Assembly instructions
• Bottle of shock oil

Specifications

• Length (mounting hole to hole): 62mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring length: 27mm
• Full shaft travel: 10mm (without rubber bump stop)
• Shaft diameter: 3.5mm

Fits
