DMD48G03Hot Racing Bx Mt Sc 4 Steering System, Aluminum and Carbon Fiber, Brushed
Hot Racing Suspension Accessories
$25.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

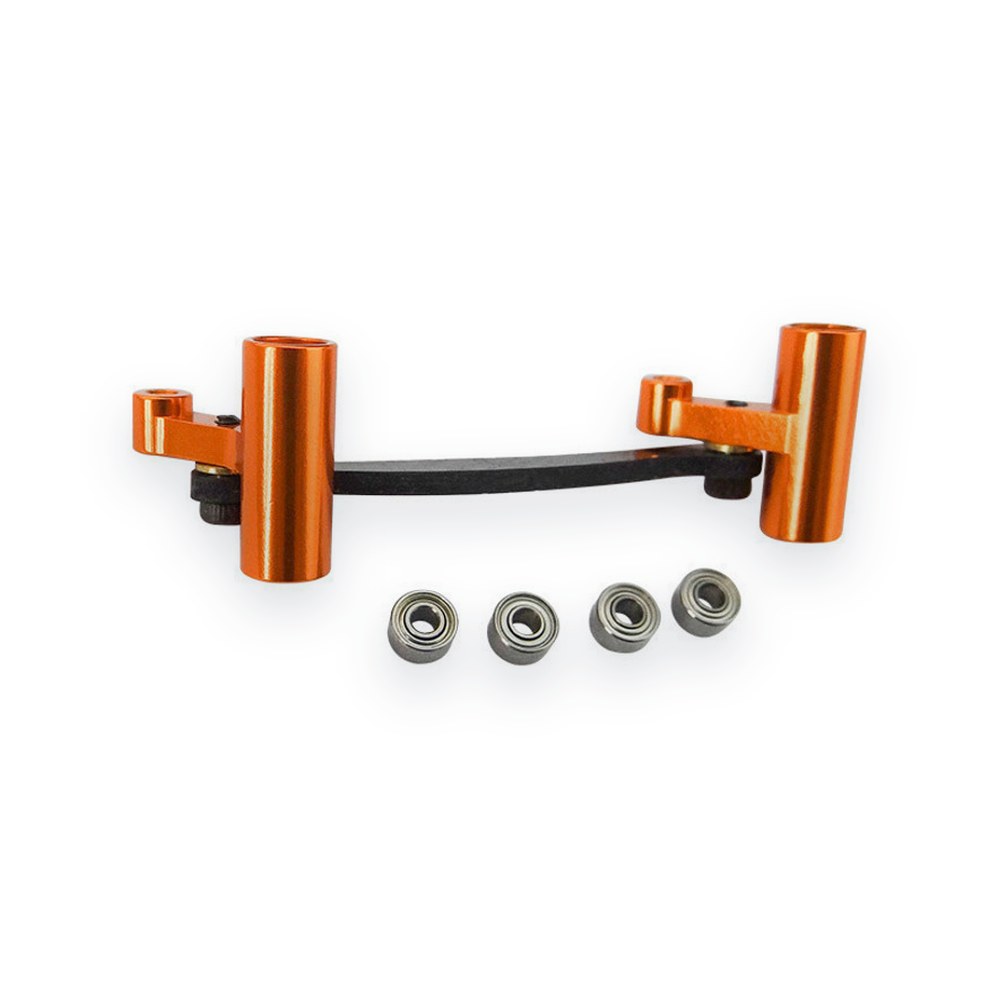

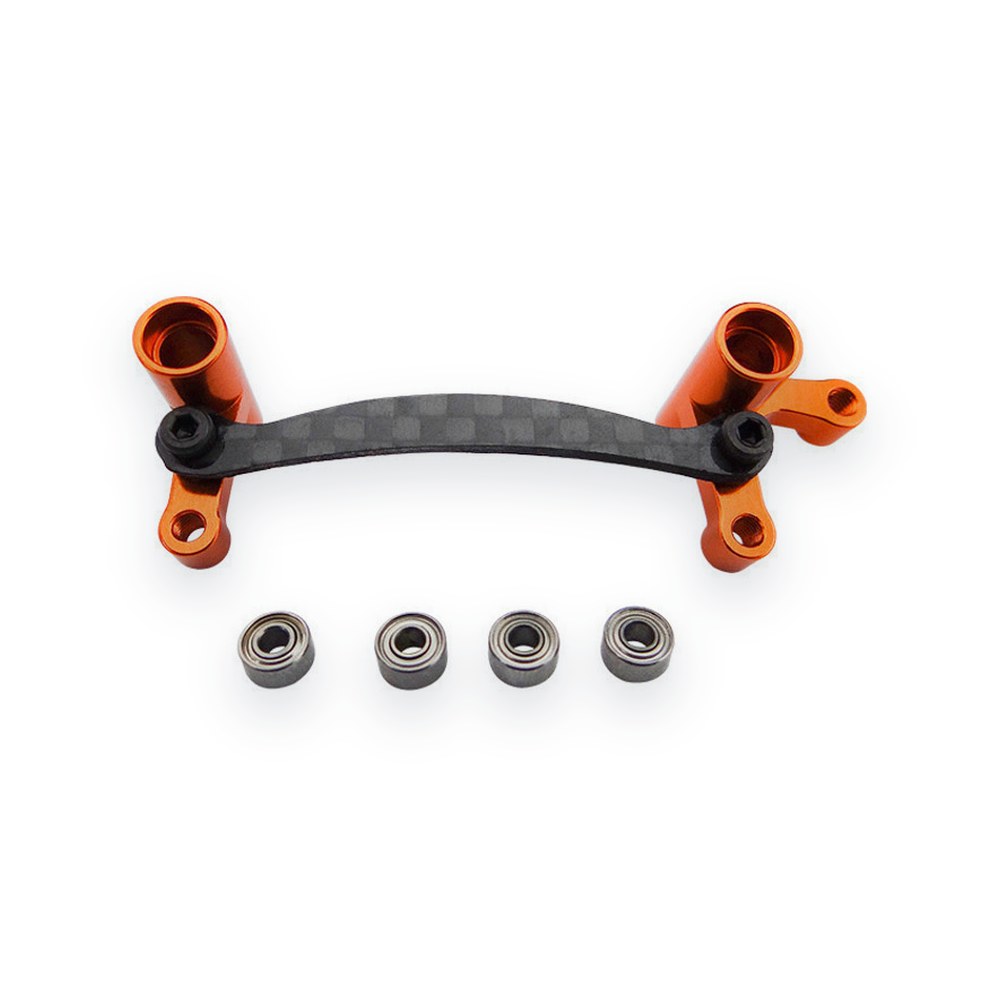

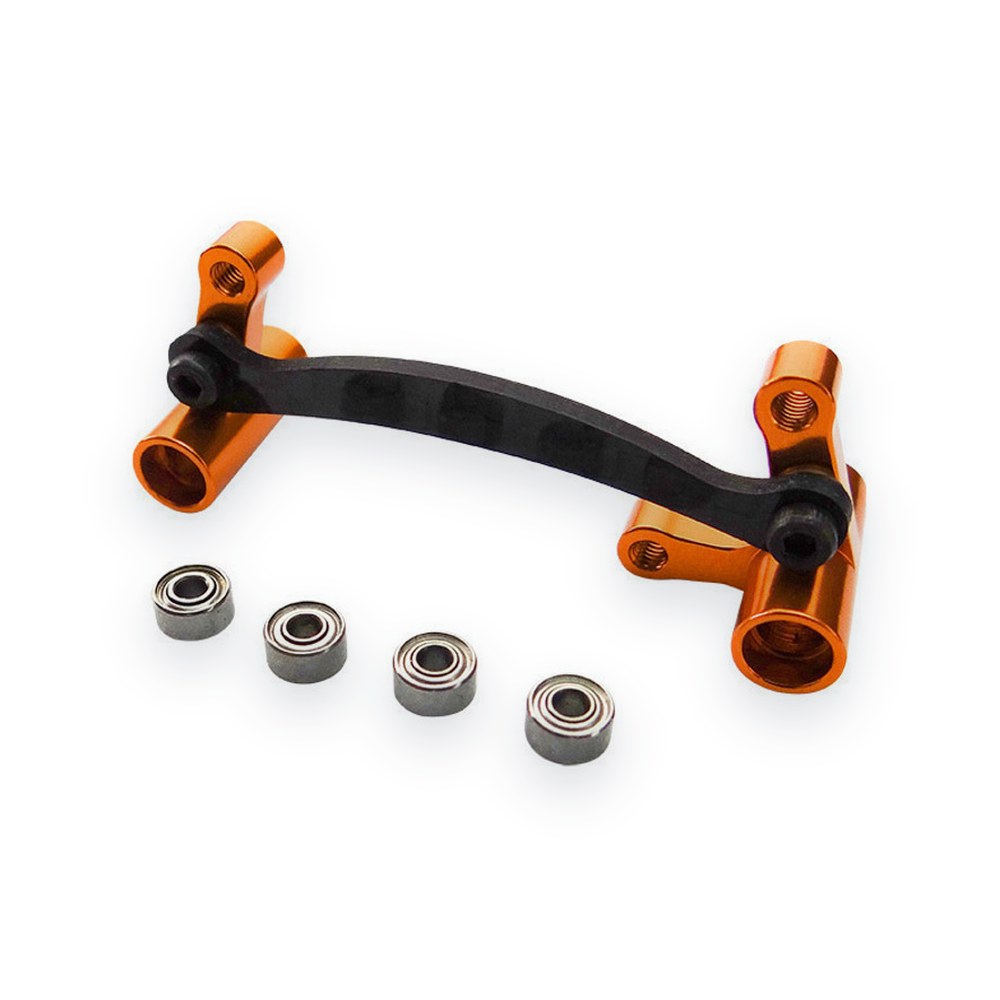

A Hot Racing aluminum steering bellcrank for brushed Dromida 1/18 models: BX4.18, DB4.18, DT4.18, MT4.18, SC4.18 and Wasteland. It does not fit the brushless Dromida vehicles.
Features
- CNC machined 6061 aluminum bellcranks, anodized orange
- Carbon fiber draglink with brass bushings
- Ball bearings for smooth, consistent bellcrank action
Includes
- One aluminum steering bellcrank
- Four 2x5x2.5mm ball bearings
- One carbon fiber steering rack center brace
Requirements
- Removable threadlock is recommended on screws that thread into the aluminum bellcranks.
Specifications
- Brass bushing: 2.6mm total length, 2.7mm OD, 2mm ID, 4.5mm flange OD, 0.45mm flange thickness
Notes
- Replacement brass bushings are Hot Racing RDMD48C. This part replaces the stock plastic Dromida steering rack DIDC1010. It does not fit vehicles that use steering rack DIDC1130.
- KNOWN TO FIT:
- 1/18 Wasteland Buggy 4WD RTR, 1/18 Wasteland Truck 4WD RTR, BX4.18 Buggy 4WD RTR, DB4.18 Desert Buggy 4WD RTR, DT4.18 Desert Truck 4WD RTR, MT4.18 Monster Tr
Fits
Dromida SC4.18 Short CourseDromida MT4.18 Monster TruckDromida BX4.18 BuggyDromida DB4.18 Desert BuggyDromida Wasteland
