Hot Racing 2.2 Beadlock Wagon Wheels, Raw Steel, 6-Lug, 12mm Hex (4)

About this part

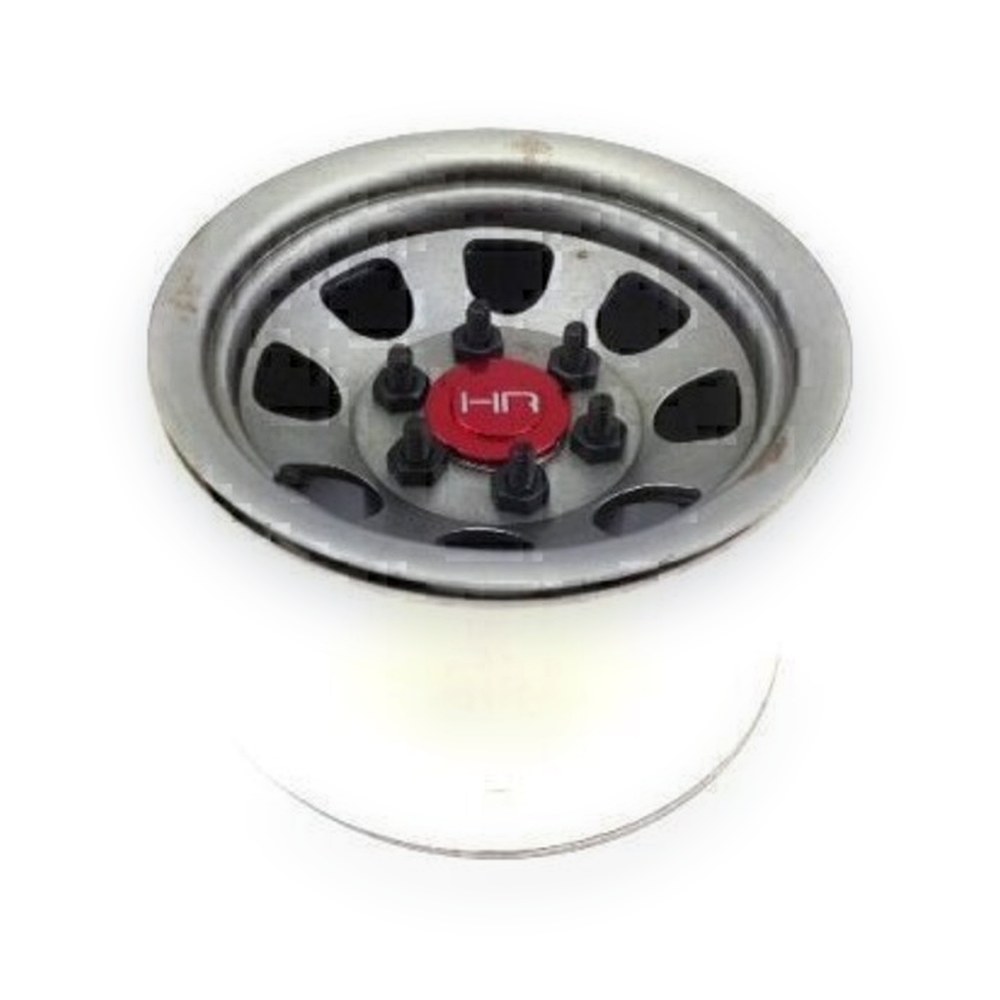

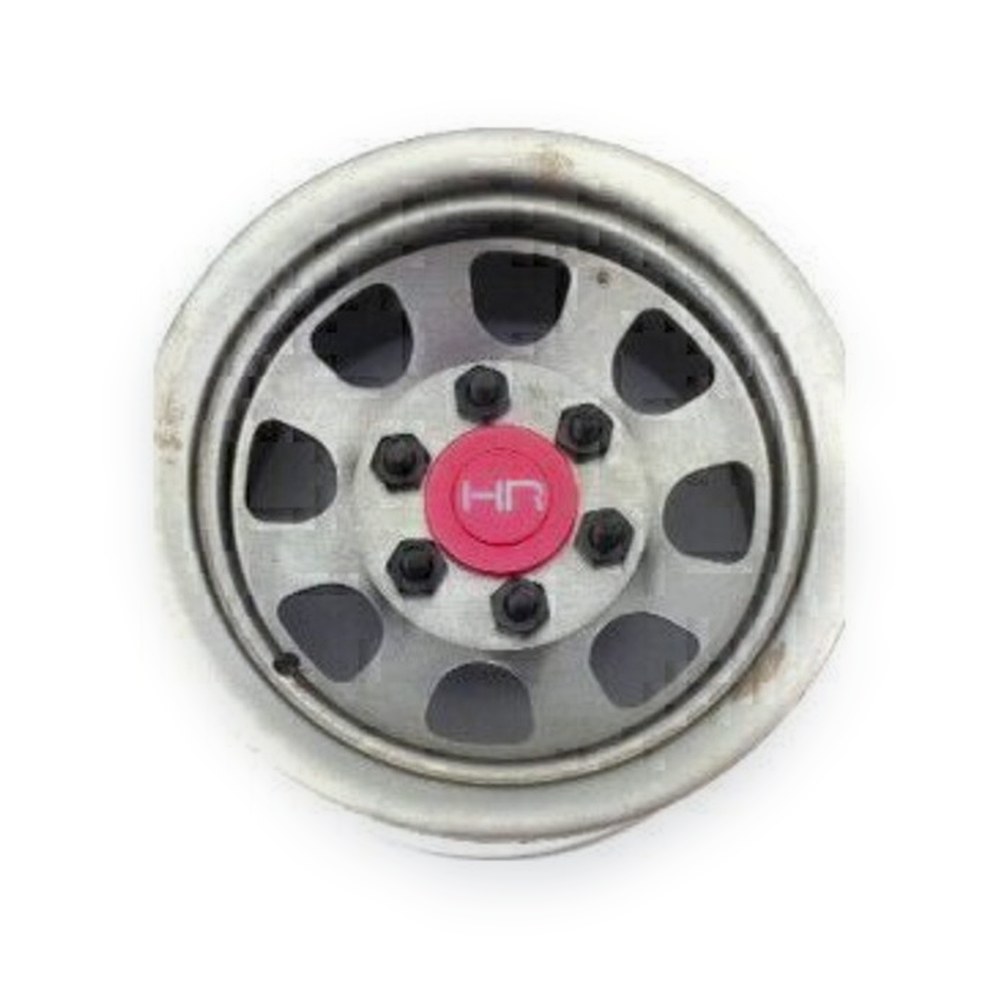

These are Hot Racing 2.2 six-lug steel wagon wheels in raw steel, with 12mm hex hubs. The stamped steel is smoothed, nickel plated and finished with durable powder coating. The inner ring may be aluminum or polymer. The three-piece beadlock design needs no glue, so tires and foams can be switched without new rims. The heavy wheels add weight low on the vehicle for traction and stability. The hub is CNC machined 6061 aluminum, with a scale-looking valve stem. Four steel beadlock wheels are included.

Requirements

• 2.2 tires and foams, installation, 2mm hex wrench, 5mm nut driver or socket, medium threadlock for hub bolts

Specifications

• Hub: 12mm hex, for 2.2 in tires
• Outer rim lip diameter: 63mm
• Inside rim diameter: 53mm
• Weight: 120g each
• Width, bead to bead: 40mm
• Backspacing: 15.6mm
• Screws: M2.5x12mm
• Axle thru hole: 5mm
• Replacement hardware: BLW2510N01 (black M2.5x12mm) or BLW2510N08 (chrome M2.5x12mm)
• Other styles include BLW22H01 (black 6-lug 8-hole 12mm hex hub) and BLW22H38 (white 6-lug 8-hole 12mm hex hub).
• FITS:
• HPI Electric Wheely King 1/12, Axial AX-10 Scorpion Crawler, Axial XR10 Crawler, Axial Wraith 4WD Rock Racer RTR, Axial AX-10 Ridgecrest Crawler, Vaterra Ascender 1:1
