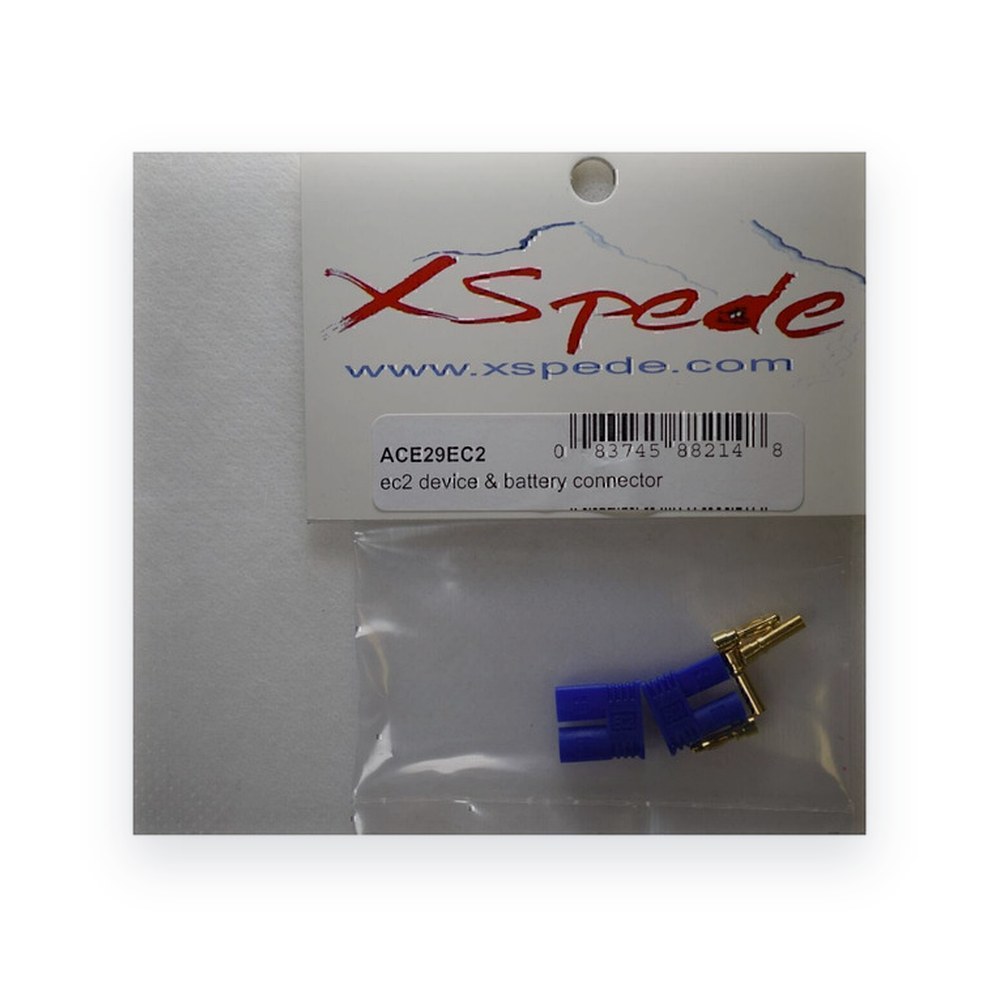

X-Spede EC2 Device and Battery Connector

About this part

Team Integy EC2 skidproof 2 mm connector set, with a blue plastic housing. Each set carries male and female 2 mm contacts and is a common pick for battery-to-ESC connections.

Features

• Blue plastic housing with two male and two female 2 mm diameter connectors.

You will receive

• Two EC2 skidproof 2 mm connectors.

Requirements

• You will need to solder your leads to the connectors.

Note

• The contacts seat wire side first into the housing, which is the reverse of most other EC connector brands.
• ASSEMBLY ORDER:
• 1. Run the wire through the plastic housing.
• 2. Strip and tin the wire.
• 3. Pre-tin the contact, keeping solder inside the cup.
• 4. Solder the wire into the contact.
• 5. Seat the contact into the housing.
